0.1KW Smt Assembly Production Line Automatic Pcb Magazine Vacuum Suction Loader

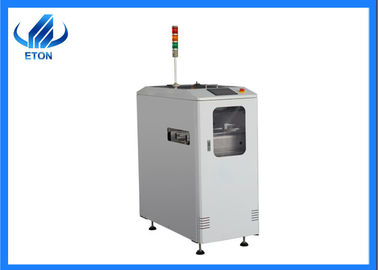

Large Image : 0.1KW Smt Assembly Production Line Automatic Pcb Magazine Vacuum Suction Loader

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CCC
Model Number:	Vaccum loader
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	4 weeks after payment
Payment Terms:	L/C, T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Name:	Vaccum Loader	Warranty:	1 Year
Dimension:	L600W950H120mm	PCB Size:	500*390 Mm
Electric Control Box:	1 Set	Controller:	Mitsubishi PLC Programmable Controller
Highlight:	smt pick and place equipment , smt assembly machine

Vacuum loader

Vacuum feeding machine is mainly suitable for automatic feeding of various circuit boards

performance:

Easy operation, stable performance, compact structure and easy maintenance; greatly reducing the possibility of disaster relief

Parameter:

Item	Vacuum loader
Dimension	L600W950H120mm
PCB size	L500*W390MM
PCB storage	100PCS
Rail transfer height	920±30mm
Shipping direction	Right to left/left to right
Conveyor belt	7MM flat belt
Conveyor transmission speed	9M/min
Power supply	2-phase 220V 50HZ
power	0.1KW
Gas source	0.4～0.6MPa
Weight	About 150KG
Electric control box	1 Set
Operation control panel	Display control touch screen
Controller	Mitsubishi PLC programmable controller

Notice:

Non-equipment maintenance personnel must not open the front and rear doors of the equipment
Do not reach into the inside of the suction machine while the equipment is running.
Do not put materials that are not related to the production of PCB into the inside of the suction machine.
Do not click on the touch screen with hard objects
Do not use in an environment where the ambient temperature exceeds 30 °C.
Do not open the rear door of the device when AGY is about to reach the position of the suction machine.
Do not change the parameters while running automatically.

Our service:

We highly value after-sales service:

We will provide one year warranty
We will provide latest technology support
We have a special overseas sales department, can support quickly.
We have professional knowledge in accordance with the maintenance instructions.
