Name: | PCB Vaccum Loader | Warranty: | One Year |
---|---|---|---|
Apply To: | Smt Production Line | Weight: | About 150 Kg |
PCB Storage: | 100 Pcs | Dimension: | L600*W950*H120mm |
High Light: | smt pick and place equipment,smt assembly machine |

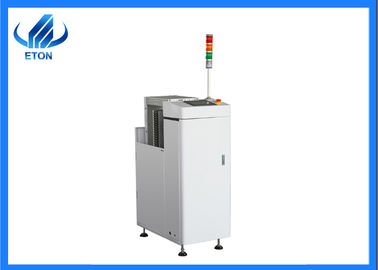

Vacuum loader
The principle of the vacuum suction machine:
The suction plate machine has a straight-through function, which is mainly used for the SMT production line bare board automatic board.
Closed design guarantees the highest level of safety:
1.The top safety cover can be opened for easy maintenance Machine hardware processing
2.Easy to use human-machine interface control
3.Adjustable nozzle position ensures clamping of the board
4.Stable balance width adjustment device (manual control)
5.machine footprint
6.Compatible SMEMA interface
Vacuum loader Parameter:
Dimension: L600*W950*H120mm
Weight: About 150KG
Electric control box: 1 Set
PCB and Conveyor:
PCB size: L500*W390MM
PCB storage: 100PCS
Rail transfer height: 920±30mm
Conveyor belt: 7MM flat belt
Conveyor transmission speed: 9M/min
Shipping direction: Right to left/left to right
Power:
Power supply: 2-phase 220V 50HZ
Power: 0.1KW
Gas source: 0.4~0.6Mpa
After sales service:
ETON pay attention to a comprehensive after-sales service strategy.
1. Install and debug products for consumers on behalf of consumers;
2. According to the requirements of consumers, carry out technical guidance on the use and other aspects;
3. Guarantee the supply of spare parts for maintenance;
4. Responsible for maintenance services;
