Product Details:
Payment & Shipping Terms:
|
| Name: | Unloader | Model: | ET-UL460 |
|---|---|---|---|
| Warranty: | One Year | Max Pcb Size: | (L)525*(W)460mm |
| Electric Control Box: | 1 Set | Power Supply: | 220V 50HZ |
| High Light: | high speed led mounting machine,smt assembly machine |
||

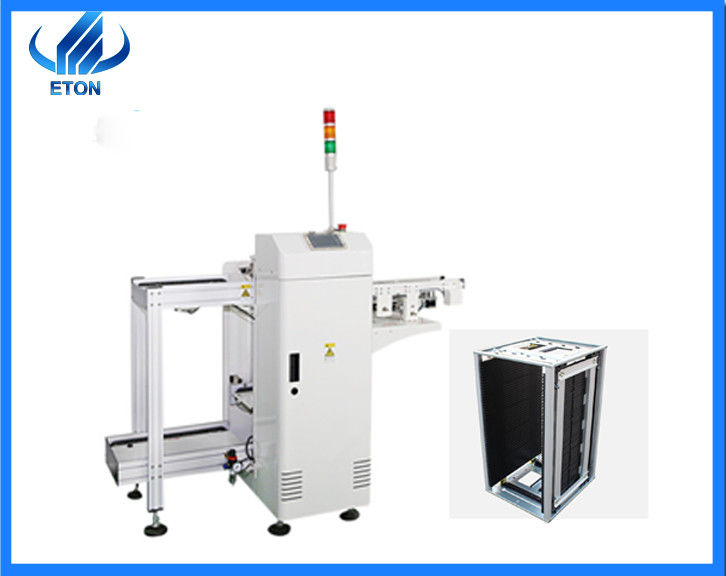

ET-UL460 unloader machine
SMT machine
In the smt production line, there are different machines for different functions. Such as Pick and place machine, reflow oven, stencil printer, loader, unloader, conveyor, and so on.
ET-UL460 is the basic machine
ET-UL460 is the unloader machine of the basic function in smt production line, it is automatically, unloader the pcb totall by machine.
Advantage
1. The equipment covers a small area, length 0.535M* width 0.53M* height 5.65M, saving space use costs.
2. Push the PCB board system device, using a custom-loaded motor with a thrust area of 0.03 square, which is balanced in one plane thrust and one-tenth of a thrust rate. Ensure that the board is never stuck and the PCB is damaged.
3. The upper and lower clamp frame devices adopt a three-dimensional clamp frame system to ensure that the frame is not damaged, and the straight-axis lifting system is positioned accurately. The frame-out position and the lower-position machine ensure that the plate is never blocked.
Good performance
1.ET-UL460 can storage 50 pcs boards, minimize manpower and working time.
2.ET-UL460 Mitsubishi PLC programmable controller.
PCB size
The Maximum size of PCB is (L)525*(W)460mm and the no. of Full load storage board is 50 pcs
Parameter:
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure | Pneumatic clamp structure |
| 0.6M long push plate Conveyor | 1 set |
| Turnover box specifications | (L)535*(W)530*(H)565mm |
| Lift platform pitch selection | 10,20,30,40 |
| Operation control panel | Display control true color touch screen |
| power supply | 220V 50HZ |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
