| Frame: | Special Aluminum Profile Guide Rail | Structure: | Pneumatic Clamp Structure |
|---|---|---|---|
| Power Supply: | 220V 50HZ | Closing Function: | Automatic |
| Gas Source: | 0.4-0.6MPa | Operation Control Panel: | Display Control True Color Touch Screen |
| High Light: | smt pick and place equipment,high speed led mounting machine |
||

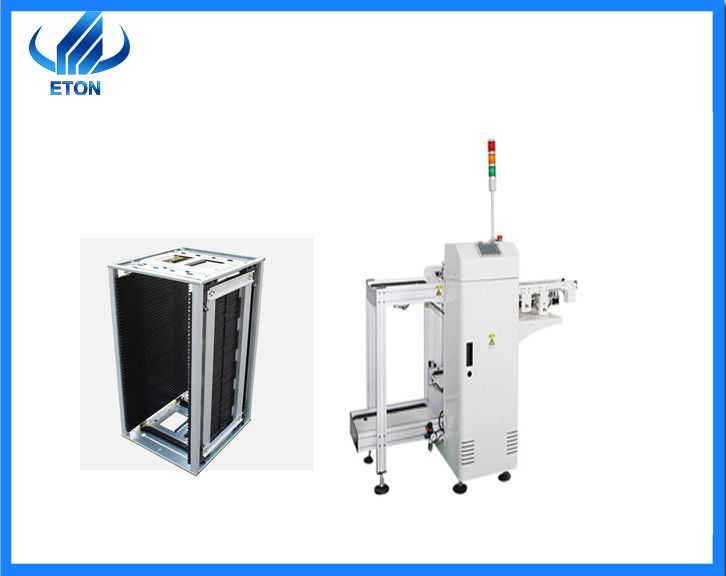

Smt Magazine Pcb Loader/unloader For Smt Production Line
ET-UL460 unloader machine
Name:smt pcb unloader machine
Model:ET-UL460
Specification: Uninstall pcb
Quality:top qualiy
Stock:large
Payment:L/C T/T
Warranty: 1 year
Package:carton box
Features:
1. The upper and lower positioning adopts optical fiber, and the positioning accuracy is 0.1MM.
2. The whole machine adopts man-machine dialogue, prompting information, and the operation is simple and convenient.
3. The storage board function follows the SMT processing technology requirements, and it is truly first-in, first-out, and small-circulation mode on the program, reducing the time of entering and leaving the PCB, improving production quality and efficiency.
Parameter
| Dimension | L2520*W1120*H1200mm |
| Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure | Pneumatic clamp structure |
| 0.6M long push plate Conveyor | 1 set |
| Turnover box specifications | (L)535*(W)530*(H)565mm |
| Maximum size of PCB | (L)525*(W)460mm |
| Direction | Left to right / right to left |
| Lift platform pitch selection | 10,20,30,40 |
| Controller | Mitsubishi PLC programmable controller |
| Closing function | Automatic |
| Operation control panel | Display control true color touch screen |
| power supply | 220V 50HZ |
| Gas source | 0.4-0.6MPa |
| No. of Full load storage board | 50 pcs |
| Electric control box | 1 set |
Service
The hot-selling unloader machine will provide detailed explanations for the purchaser.
Before the sale. The detailed functions of the equipment and the matters that should be paid attention to during the application process will be mentioned, as this is to ensure that the equipment can work normally.
We provide our service as soon as possible!
