Product Details:
Payment & Shipping Terms:
|
Name: | Pick And Place Machine | Dimension: | 1104*1584*1655mm |
---|---|---|---|
System: | Windows 7 | Software: | R&D Independently |
Mounting Height: | <25mm | Feeders Station: | 26PCS |
Warrenty: | 1 Year | ||
High Light: | smt pick and place equipment,smt assembly machine |
new economic middle speed multi-funcational SMT machine

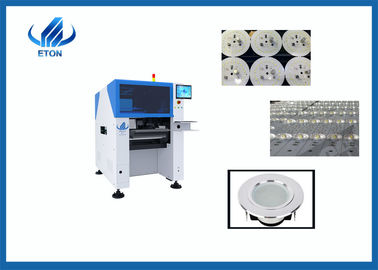

RT-1 small multi-functional pick and place machine. New structure design, PCB board fixed, mounted head XYZ axis movement, flight camera and head movement together, more accurate identification of coordinates, faster speed; Panasonic original servo motor control screw, not easy to wear, high stability; Industrial computer control system, touch display, easy to operate; Mounting large components is faster and more stable.
reference configuration
1. Control system: industrial computer + precision motion control card + touch display
2. Software system: ETON independently develops the Chinese and English operating systems
3. Sport motor: panasonic original motor and high-end magnetic linear motor
4. Mount suction nozzle: independently developed several types of suction nozzle
5. Sliding device: precision screw rod
6. Visual device: MARK point recognition, imported high precision visual camera
7. Feeder: high-speed electric feeder
8. Feeding mode: double motor electronic feeder
Application
Down light,bulbs,driver power,streetlight,panel light
Attention
1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
