| Name: | Pick And Place Machine | Dimension: | 1104*1584*1655mm |
|---|---|---|---|
| System: | Windows 7 | Mounting Height: | <25mm |
| Warrenty: | 1 Year | Speed: | 30000~35000CPH |
| Power: | AC 380V | Power Consumption: | 6KW |
| High Light: | smt pick and place equipment,high speed led mounting machine |
||

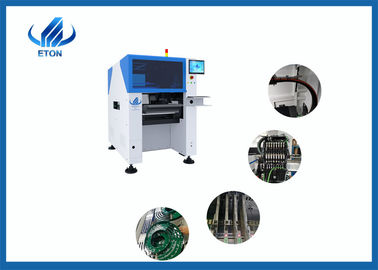

New economy servo motor high-speed multi-functional pick and place machine
8 head mounting, eight suction nozzle to pick at the same time, using imported camera visual alignment, MARK correction, improve the SMT stability, precision and pasted on the maximize placement rate, maximum patch speed is 30000 ~ 35000CPH, has exclusive patent technology: electronic feeder feeding system, faster and more accurate, non-stop material re-loading system, save time cost and artificial cost. The maximum size of PCB is 400*350mm.
| RT-1 | ||
| PCB | PCB length width | Max:400*350mm min:50*50mm |
| PCB thickness | 0.1~6mm | |
| PCB clamping | Electric clamping | |
| Mounting mode |
ØGroup to pick and separate to place ØSeparate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2 sets of imported camera Vision alignment ,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <25mm | |
| Mounting speed | 30000~35000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 6KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >1500mm/sec | |
| Transmission direction | Single | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | 26 PCS |
| No.of nozzles | 8 PCS | |
| Feeding way | Electric feeder with double motor | |
components
LED,capacitors,resistors,IC,lens ,shaped components,etc.
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
