| Name: | Pick And Place Machine | Dimension: | 2700*1900*1530mm |
|---|---|---|---|
| System: | Windows 7 | Speed: | 15000~17000CPH |
| PCB Size: | Max:330*1200mm Min:90*120mm | Feeder Station: | 34 PCS |
| Payment: | T/T,LC | Power: | 380AC,50 HZ |
| HEAD: | 68 PCS | FEEDER: | 34PCS |
| High Light: | high speed led mounting machine,smt assembly machine |
||

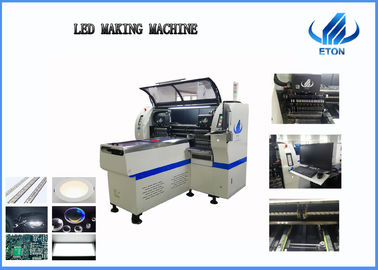

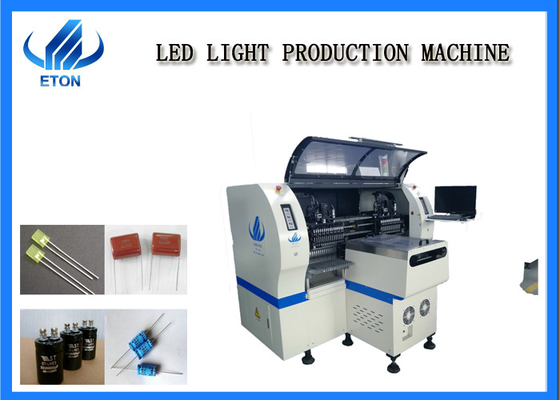

HT-XF Dual-purpose LED professional high speed mounter
Performance introduction
High Speed and High Precision
This special Mounter has a speed of 150000~170000 CPH.Can save space, labor costs, management costs
No. Of feeder station:34PCS nozzles:34PCS
Good durability
Using High Stability Electronic Dual Motor
The wear resistance of screw rod is not easy to deviate and has high accuracy.
The guide rail has strong bearing capacity and high stability.
High-quality hardware configuration for 24-hour machine operation.
Features
Apply to the 0.6m,0.9m,1.2m LED rigid PCB and 0.5m,1m flexible strip.
17 nozzles for each mounting module,part A or B can be mounted separately synchronously.
Exclusive patent technology:group to pick and group to mount
| HT-XF | ||
| PCB | PCB length width | Max:330*1200mm min:90*330mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group to take and group to mount | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | LED monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <15mm | |
| Mounting speed | 150000~170000CPH | |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
| Components space | 0.2mm | |
| No.of feeders station | 34PCS | |
| No.of nozzles | 34PCS | |
| Power | 220AC 50HZ | |
| Power consumption | 5KW | |
| Conveyor transmission | Max length:1200mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Single (left to right or right or left) | |
| Transmission mode | Auto online drive | |
| Position mode | Optical | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
FAQ
1, What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2, What is the delivery date?
We will deliver the goods after 30 days' deposit.
3,What mode of transport does the goods adopt?
Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
4,What is the direction of transmission of machines?
The transmission direction of this machine is single direction.From left to right or from right to left.
5, How about your operating system?
The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
