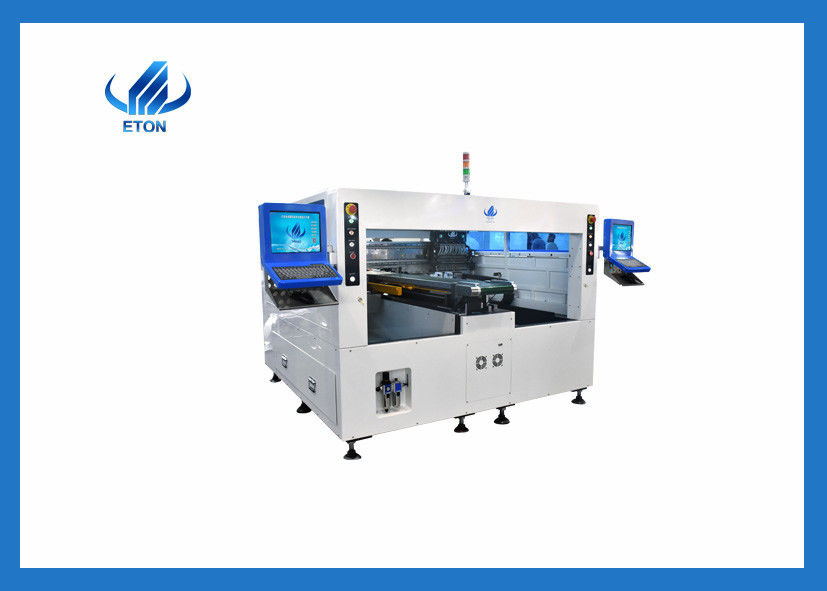

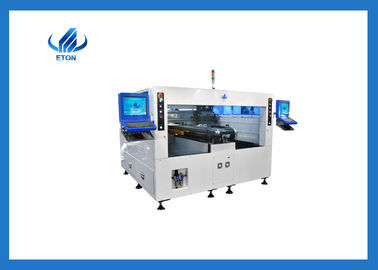

LED light 5m 50m flexible strip magnetic pick and place machine
Features
Producing with 2~4 types of materials with high capacity,available for 5m,50m or any length of flexible strip and roll to roll.
dual-arm four module ,15 nozzles ,for each mounting part ,part A /B/C/D can be mounted separatly or synchronously.
Calibration automatically,high precision,available for RGB.
Strong independent research and development capability
Exclusive patent technology :group to pick and group to mount.
Motionj control card module 1 set R&D by ETON.
Electrical control R&D by ETON.
Vision for the flight identification ,mark correction
Product presentation
High Speed: Applying the exclusive patented technology of group-based and group-based pasting, the pasting speed is 200000 CPH, 64 feeders station and 64 nozzles. It can automatically transmit on-line. And It can produce 2-4 kinds of materials at the same time, which greatly improves the efficiency.
Strong durability: The quality of hardware equipment is guaranteed by certificate, the quality of dual motor electronic flying and guide rail and screw is guaranteed, which can support 24-hour operation.
Simple operation: Windows 7 system can be used to switch the Chinese-English interface, usually 3 to 5 days training of operation is enough.
Technical parameter
| HT-T9 |
| PCB |
PCB length width |
250mm*any length |
| PCB thickness |
0.5~1.5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group to take and group to mount |
| O.S. |
system |
Windows 7 |
| software |
R&D independently |
| display |
LED monitor |
| Input device |
Keyboard , mouse |
|
Vision
system
|
No.of camera |
5 sets of imported camera
Vision alignment,mark correction
|
| Mounting precision |
0.02mm(repeat precision) |
| Mounting height |
<15mm |
| Mounting speed |
100000~150000CPH |
| Components |
LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. |
| Components space |
0.2mm |
| No.of feeders station |
64PCS |
| No.of nozzles |
64PCS |
| Power |
380AC 50HZ |
| Power consumption |
6KW |
| Conveyor transmission |
Belt drive |
| Transmission speed |
>500mm/sec |
| Transmission direction |
Single (left to right or right or left) |
| Transmission mode |
Auto online drive |
| Position mode |
Optical |
| Air pressure |
>5.0kg /cm² |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1set |
Independent research and development by ETON |
| X,Y,X axis drive way |
Servo motor control for X,Y,Z axis |
| Feeding way |
Electric feeder with double motor |
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
