Product Details:
Payment & Shipping Terms:
|
| Number Of Heads: | 16 | Air Pressure: | >5Kg Per Cm |
|---|---|---|---|
| Mounting Precision: | ±0.02mm | Power/power Consumption: | 380AC,50Hz/ 8kw |
| PCB Length Width: | Max:12000*300mm Min:100*100mm | Total Weight: | 2000KG |
| High Light: | high speed led mounting machine,smt assembly machine |
||

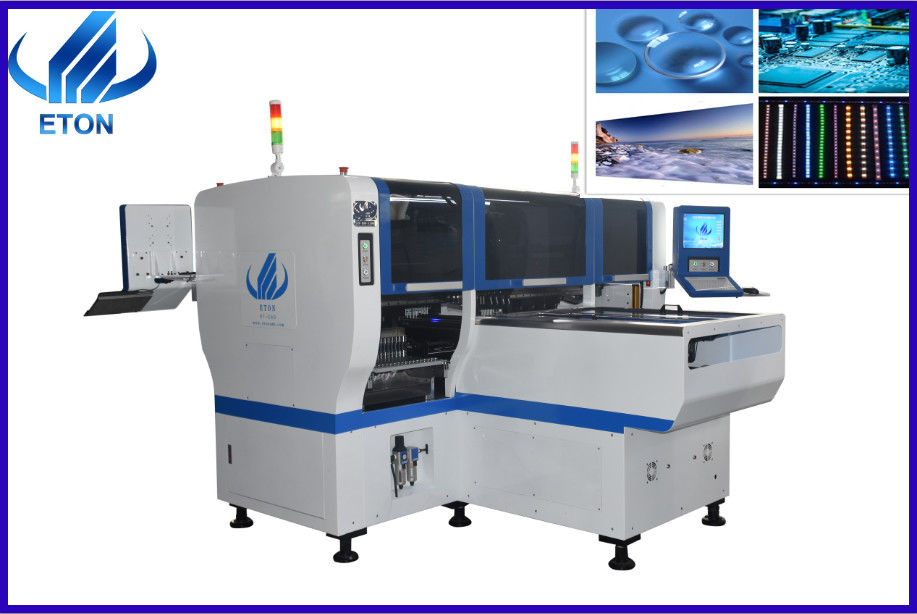

Multifunctional Pick And Place Machine HT-E8D
The machine is introduced
1.This is multifunctional machine HT-E8D with double module,total 16 head,each part 8 head, can produce two types of products at the same time.
2.The X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
3.It's intelligent,can produce different types of LED light and electric board,such as tube,bulb,strip,panel,downlight,streetlight,power driver.
4.Its high precision(accuracy),apply to LED chips,resistor,capacitor,IC,shaped components etc.
5.It is highspeed machine,the optimum speed is 80000CPH.(For led chips around 50000CHP,for driver around 35000CPH.)
Technical parameter
|
Number of Heads |
16 |
|
Alignment |
Vision for the Flight Identification,Mark correction
|
|
Drive Motor |
High-end magnetic linear motor + Servo Motor |
|
Max Placement Rate |
80000CPH |
|
Max Tape Feeder Capacity |
40 |
|
power/power consumption |
380AC,50Hz/ 8kw |
|
Mounting Precision |
±0.02mm |
|
PCB Length Width |
Max:12000*300mm Min:100*100mm |
|
Air pressure |
>5Kg per cm |
|
Component Range |
Smallest Size 0402 |
|
Max Height 36mm |
|
|
Length |
3150MM |
|
Width |
2250MM |
|
Height |
1650MM |
|
Total Weight |
2000KG |
Our services
Before buying machine
1.Professional sales manager of LED SMT machine, provide professional suggestion
and service to you !
2.24 hours online service and technical support, solve your questions quickly!
3.Sound company organization and working system, guarantee you a fast delivery!
4.Design and provide the whole SMT processing lines for you based on your budget ,
workshop covering area with best prices!
After buying machine
1.1 year free warranty
2.Visit customers regularly and gather information.
3.Provide latest information about technology and equipment.
Ship and package
1.shipping: Within 30 days after payment
2.Packaging: Standard export package or customized packag
