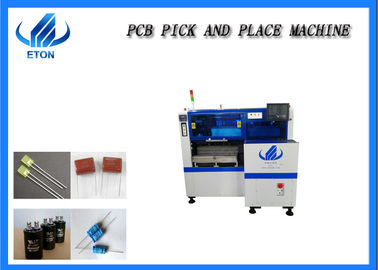

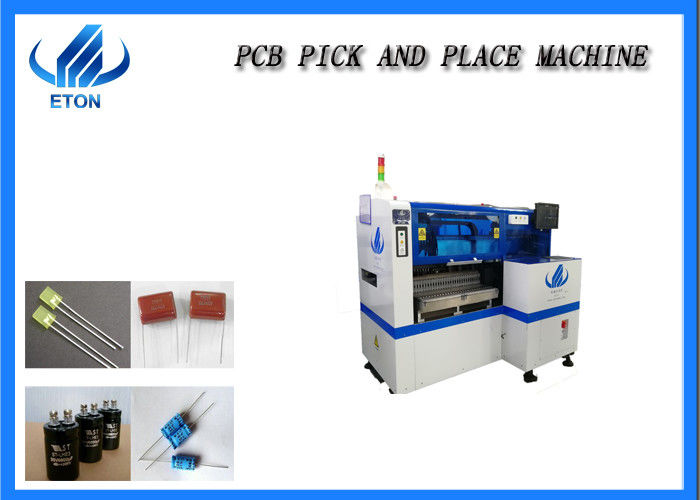

Full-automatic PCB Board Assembly led light IC pick and palce machine
Details of the machine
Mounting mode:Group to picking and separate to placing；Separate to picking and separate to placing
Y axis and Z axis is High-end magnetic linear motor; Z axis 8 servo motor.
Electrical control and motion control card module independent research and development by ETON.
It is can mounting capacitors,resistors,IC,shaped components,etc.apply to power driver.electric board.lens.linear bulb.household appliance etc.
lThe maximum size of PCB board is 500*350mm, the minimum size is 100*100mm, and the thickness of PCB board is 0.5~3mm. it adopted the technology of Group to picking and separate to placing ,Separate to picking and separate to placing.
lVision system: vision for the flight identification ,mark correction with 5 sets of imported camera.
| HT-E5S | ||
| PCB | PCB length width | Max:500*350mm min:100*100mm |
| PCB thickness | 0.5~3mm | |
| PCB clamping | Electric clamping + Adjustable pressure pneumatic | |
| Mounting mode |
ØGroup to picking and separate to placing ØSeparate to picking and separate to placing |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | LED monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | High-end magnetic linear machine + Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | 30PCS |
| No.of nozzles | 8PCS | |
| Feeding way | Electric feeder with double motor | |
