Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | System: | Windows7 |
|---|---|---|---|
| Total Weight: | 1250kg | Nozzles: | 8PCS |
| Speed: | 40000CPH | PCB Size: | 1200*350mm |
| Dimension: | 2550*1650*1550mm | Camera: | 2 Sets Of Imported Camera |
| High Light: | high speed led mounting machine,smt assembly machine |
||

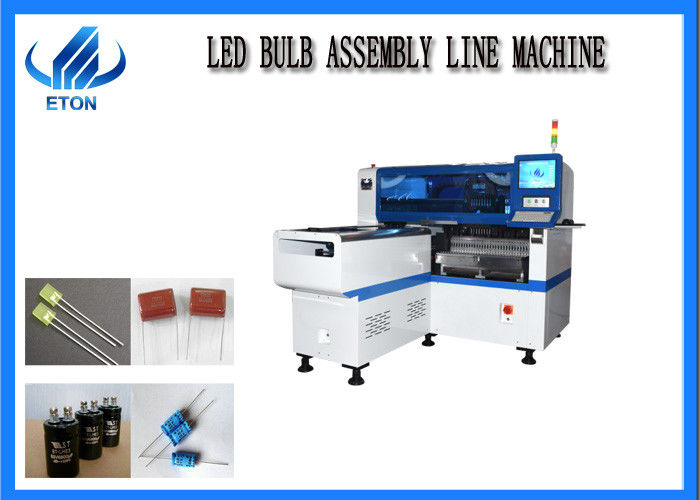

High Accuracy led bulb assembly IC smd making machine pick and place machine
Product details
1. Precision mounting head system
The mounting method of 8 nozzle heads, group picking and separate placing / separate picking and separate placing can meet the mounting requirements of different components.
Each nozzle head is independently controlled by an independent servo motor to reduce feeding and ensure mounting accuracy at a higher speed than the stepper motor.
2. High precision imported screw
The X and Y axis adopts high-end magnetic linear motor to control the screw, and the Z axis adopts panasonic servo motor to control and drive, with ultra-high acceleration performance and stable movement speed to ensure the accuracy and stability of each step of mounting.
Scope of application
Lamps and lanterns: fluorescent lamp, bulb lamp, ceiling light, panel light, cast light lamp, mining lamp, down light, etc
Lighting: soft light tube, hard tube, advertising module, etc
Pasting class: LED watch pasting
| HT-E8S | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode | ØGroup to picking and separate to placing | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
Vision system | No.of camera | 2sets of imported camera |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Conveyor transmission | Max length:1200mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
