Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | System: | Windows7 |
|---|---|---|---|
| Dimension: | 3150*2250*1650mm | Total Weight: | 2000kg |
| Nozzles: | 16PCS | Camera: | 4 Sets Of Imported Camera |
| Speed: | 80000CPH | PCB Size: | 1200*300mm |
| High Light: | high speed led mounting machine,smt assembly machine |
||

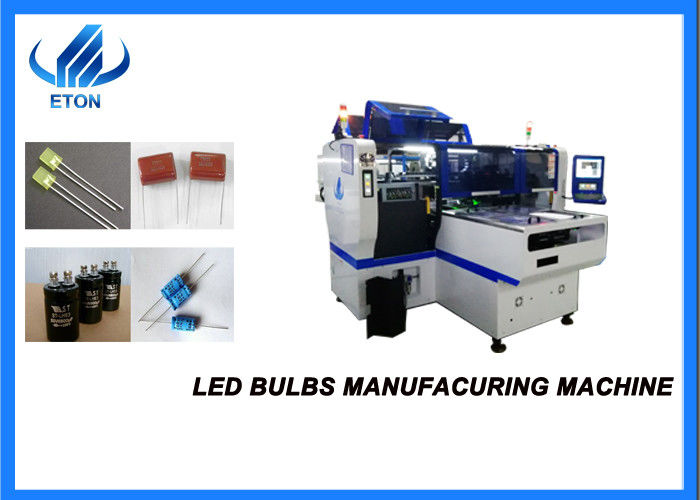

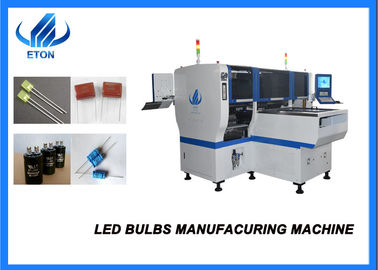

economic High Efficiency magnetic linear motor led manufacturing line pick and place machine
Details
New double module 1200 mm SMD pick and place machine, high performance universal magnetic linear motor multifunctional placement machine, global initiative, has exclusive patent technology, electronic feeder feeding system,vision alignment flight identification, MARK correction, non-stop material re-loading system, coordinate generated automatically optimize function such as technical support, independent research and development of new science and technology, to provide convenient services.
Product features
1. Platform drive adopts panasonic servo motor from Japan, and lead screw with linear guide rail to ensure the stability and control accuracy of platform movement.
2. The X and Y axis adopt high-end magnetic linear motors to ensure the high accuracy, speed and stability of the patch.
3. 16 high-speed heads work at the same time, greatly improving the cost performance of the equipment. Suction head movement, high precision, long durability.
4. Simple and easy to understand graphical programming, greatly improve the convenience of operation, automatic visual positioning to assist positioning, positioning accurate and convenient.
| Vision system |
2 sets of imported camera Vision for the alignment identification,mark correction Visual recognition system can process the absorbed components into the required mounting angle through image recognition, and ensure the mounting accuracy, which can reach 0.02mm. |
| High efficiency |
Dual system ,Two module ,16 nozzles totally,40 feeders station . Flight camera component identification method is used to maximize the mounting speed, and the maximum mounting speed is 80000 points per hour. |
| Strong stability |
The use of dual motor electronic flying feeding ensures the mounting accuracy, stability and speed. |
| Easy to maintain |
Support Chinese and English operation interface, easy to understand and learn Machine new equipment, powerful and easy to operate software, simple structure, easy maintenance, low power consumption. |
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
Packaging & Delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
FAQ
What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
What is the maximum height of components that can be mounted on a machine?
The height of the mounting component can reach 36 mm, and the minimum mounting component can be 0402.
What is the length of the playable PCB?
Max:500*350mm min:100*100mm
Is this machine difficult to operate?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
