Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine/chip Mounter | Module: | HT-F9 |
|---|---|---|---|
| Payment: | TT/LC | Speed: | 200000 CPH |
| Max PCB Size: | 1200*330 Mm | Suitable For: | LED/CAPACITOR/RESISTOR/IC |

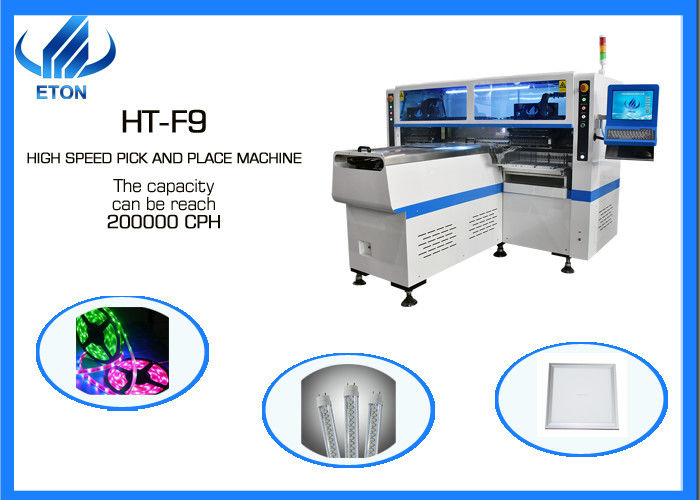

Magnetic linear motor pick and place machine
The structure of ETON pick and place machine
Pick and place machine make up of Software + Electric +Machine part
| The Software of ETON pick and place machine is independent research and development by ourselves. So we can provide the Software update are free for life . |
| The Electric also is independent research and development by ourselves |
| The Machine part we have our special design for more good for mounting and adopt the most Excellent manufactures from all over the world. |
The imported part of ETON pick and place machine
ETON is the big manufacture of pick and place machine, have exported more than 20 countries, the good quality of ETON pick and place machine is line in:
1. Electrical control and software is independent research and development by ETON
2. The X,Y Axis drive way is High-end magnetic linear motor and servo motor.Imported from Rex roth
3. Chain is imported from Igus
4. Camera is imported from IDS
The most faster ETON pick and place machine
ETON pick and place machine is famous as the super high speed. For this module HT-F9, the optimal speed can be reach 200000 CPH, very high speed and good quality
The details of fastest pick and place machine
There are some parameter of HT-F9 pick and place machine
| HT-F9 pick and place machine | |
| Dimension | |
| Length | 2700 mm |
| Width | 2120 mm |
| Height | 1550 mm |
| PCB | |
| Max PCB length Width | 1200*330 mm |
| Min PCB length Width | 80*330 mm |
| PCB Thickness | 0.5-5 mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group to take and group to mount |
| Capacity | |
| Mounting speed | 200000 CPH |
| No. Of Feeder Stations | 68 pcs |
| No. Of Nozzles | 68 pcs |
The good service for you
ETON company provide free install and training and one year warranty.
During warranty any parts need to be repaired and replace will be free.
