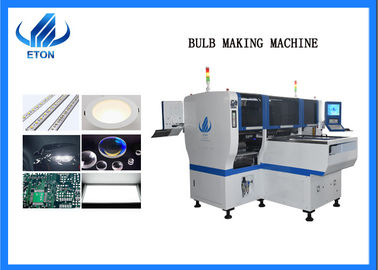

High Quality Visual camera Price pick and place machine for led bulb production line
The Difference between Double Module Mounting Machine and Single Module led light making Machine is that the double mounting machine have dual system and to produce two different products at same time.
This is a multifunctional pick and place machine, it is can mounting LED,capacitors,resistors,IC,shaped components,etc.
This led light making machine can meet the needs of producing two kinds of products at the same time. The mounting speed reaches 80,000 CPH, which greatly improves the production efficiency.
Product features
1, the use of industrial computer + independent special controller control, system stability, simple operation, easy to learn.
2. The software is powerful, and the programming coordinates are displayed in digital and graphical ways, so it is convenient to adjust and change the coordinates. The progress and components of the patch are displayed graphically in the production process, and the subsidy materials are convenient.
3. The software adopts the database system, different kinds of PCB programming can be stored, easy to call, new product programming, lifelong call.
4. The negative pressure detection system is adopted to accurately detect the suction material and effectively prevent the material leakage and throwing.
5. Optional: 8mm, 12mm, 16mm and 24mm automatic feeder; Different suction nozzle
| HT-E8Dl ed light making machine | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode |
ØGroup to pick and separate to place ØSeparate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 80000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 8KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | High-end magnetic linear machine + Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | Duel mode.totally 40 |
| No.of nozzles | Dual mode.totally 16 | |
| Feeding way | Electric feeder with double motor | |
a whole production line show
Honour show
ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.
Including 9 invention patents,112practical patents,12 software copyrights.
