Name: | Pick And Place Machine | Visual Camera: | 2 Sets Of Imported Camera |
---|---|---|---|
Mounting Speed: | 80000CPH | Drive Way: | High-end Magnetic Linear Motor +servo Motor |
PCB Size: | 1200*350mm | Mounting Height: | <36mm |
Total Weight: | 2000kg | Model: | HT-E8D-1200 |
High Light: | high speed led mounting machine,smt assembly machine |
light production line Automatic High Precise High Stability pick and place machine
Product advantages
1.dual system,dual module machine
2.PCB length width : max 1200*300mm min:100*100mm
3.Exclusive patented technology:Group to picking and separate to placing,Separate to picking and separate to placing.
4.Vision for the flight identification ,mark correction.
5.X,Y,Z axis drive by high-end magnetic linear motor and servo motor.
6.Totally 40 feeders station and 16 nozzles.
Dual module high performance universal magnetic linear motor multifunctional high speed mounter pick and place machine, with very low material loss rate, can realize high speed PCB board handling, save the time of getting in and out of the board, the unique flight identification visual alignment system, to achieve high stability and high precision, not stop material re-loading and coordinate automatic generation function, save time.
Application industry
Household appliances industry, Auto electronics industry, Power industry, LED industry, intelligent control industry, etc.
Application

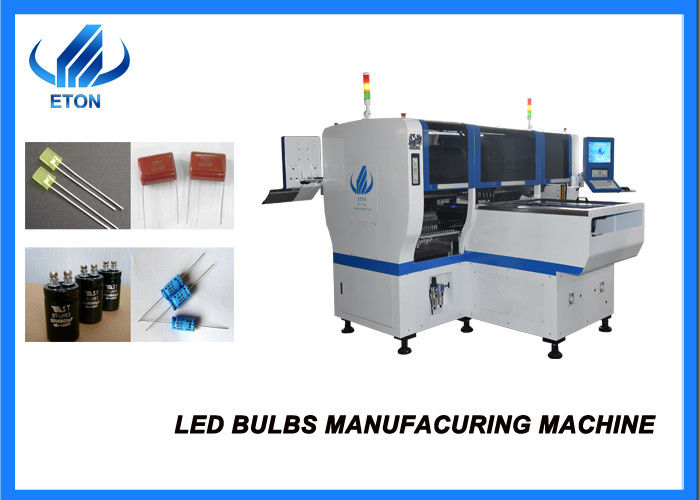

Mounting components:
LED,capacitors,resistors,
IC,shaped components,etc.
Application: Power driver,electric board,lens,linear bulb,household appliance etc.
Product presentation
lDual system ,dual module mounter
lHigh speed machine
lTo produce two different products at the same time.
lTouch screen monitor
Both direction transmission
Technical parameter | |
PCB | |
PCB length width | Max:1200*300mm min:100*100mm |
PCB thickness | 0.5~5mm |
PCB clamping | Adjustable pressure pneumatic |
O.S. | |
system | Windows7 |
software | R&D independently |
display | Touch screen monitor |
input | Keyboard mouse |
Feeding system | |
No. of feeders station | Dual mode ,totally 40 |
No.of nozzles | Dual mode,totally 16 |
Feeding way | Electric feeder with double motor |
Logistics and delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
FAQ
1,How many cameras does the machine have?
There are two sets of imported cameras.Using exclusive patent technology:vision for the flight identification,Mark correction.
2.What is the direction of transmission of machines?
The transmission direction of this machine is both direction.
3. What kind of driving mode does the XYZ axis adopt?
X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
4. What is the mounting mode?
Group to picking and separate to placing,Separate to picking and separate to placing.
5.Is your software interface in English?
English interface and Chinese interface are both available.
