Product Details:
Payment & Shipping Terms:
|
| Name: | Smt Pick And Place | Apply To: | Smt Production Line |
|---|---|---|---|
| Product: | Led Bulb, Dob,driver, Electrical Board, Display,etc | Warranty: | One Year |
| Exported: | More Than 20 Countries | Heads Number: | 8 Pcs |
| High Light: | high speed led mounting machine,smt assembly machine |
||
Pick and place machine in smt production line
Smt line
Smt line is the simple name of Surface mounting technology. It is a Circuit assembly technology which installs components (SMC/SMD, short lead) on the surface of Printed Circuit Board (PCB) or other substrate by reflow welding or dip welding.

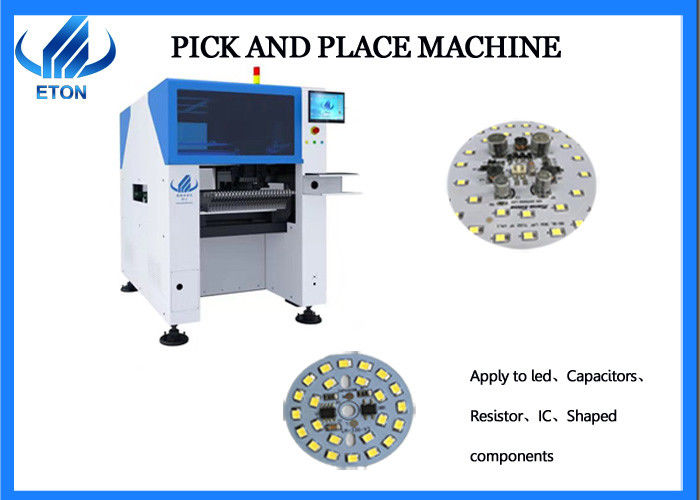

Introduction of Pick and place machine
Pick and place machine RT-1 is the multifunctional machine for many kind of products, like the bulb, power driver, electrical board, led panel, downlight, etc.
RT-1 parameter
| Dimension | 1104*1584*1655 mm |
| PCB length Width | Max:400*350mm, Min:50*50mm |
| PCB thickness | 0.1-6 mm |
| Software | R&D independently |
| Components | LED,capacitors, resistor, shaped components... |
| Capacity | 30000-35000 CPH |
| No.of nozzles | 8 pcs |
| No.of feeders station | 26 pcs |
Features
| 1.Mounting mode:Group picking and separate placing, separate picking and separate placing |
| 2.Electrical control reach and design by ETON team |
| 3.Vision alignment flight identification, Mark correction |
Exhibition
ETON have attend India Deli exhibition, Mumbai exhibition, Egypt exhibition, Turkey exhibition, Pakistan exhibition, etc.
Install and training
If you buy our machine, we will sent our engineer to your factory to install and training, it is free.
