| Name: | Pick And Place Machine | PCB Size: | 1200*350mm |
|---|---|---|---|
| Display: | Touch Screen Monitor | PCB Thickness: | 0.5~5 Mm |
| Total Weight: | 1250kg | Dimension: | 2550*1650*1550mm |
single module vision alignment ic shaped components smd pick and place machine
details

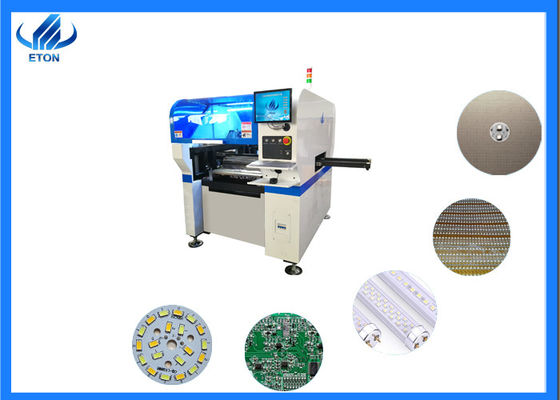

Product description:RT-1 is a high accuracy, multi-function, on-line automatic pick and place machine, the machine use ten mounting heads, equipped with high-precision components recognition system, on-line produce
RT-1 is a high accuracy, multi-function, on-line automatic pick and place machine, the machine use ten mounting heads, equipped with high-precision components recognition system, on-line production, RT-1 independent research and development the machine operation system with Chinese and English both, simple and convenient use, can be widely used in all kinds of LED lamps, LED drivers, small appliances, circuit boards, digital products, all kinds of control panels, and so on.
Reference equipment
control system: industrial PC+ accurately moving control card+ touch screen monitor
Software system: Independent research and development by ETON.
Motor: servo motor
SMT nozzle: Independent research and development Variety of models SMT nozzle.
Slider equipment: CNC brushed aluminum rod + linear slider
Visual equipment: MARK recognition system
Feeder: electronic feeder with double motor
| RT-1 | ||
| PCB | PCB length width | Max:400*350mm min:50*50mm |
| PCB thickness | 0.1~6mm | |
| PCB clamping | Electric clamping | |
| Mounting mode |
ØGroup to pick and separate to place ØSeparate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2 sets of imported camera Vision alignment ,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <25mm | |
| Mounting speed | 30000~35000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 6KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >1500mm/sec | |
| Transmission direction | Single | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | 26 PCS |
| No.of nozzles | 8 PCS | |
| Feeding way | Electric feeder with double motor | |
