Product Details:
Payment & Shipping Terms:
|
Weight: | 1200kg | Visual Camera: | 2 Sets Of Imported Camera |
---|---|---|---|
Speed: | 40000CPH | Name: | Pick And Place Machine |
PCB Size: | 500*350mm | Dimension: | 1650*1200*1570mm |
Heads: | 8 PCS | Feeders: | 30PCS |
High Light: | high speed led mounting machine,smt assembly machine |

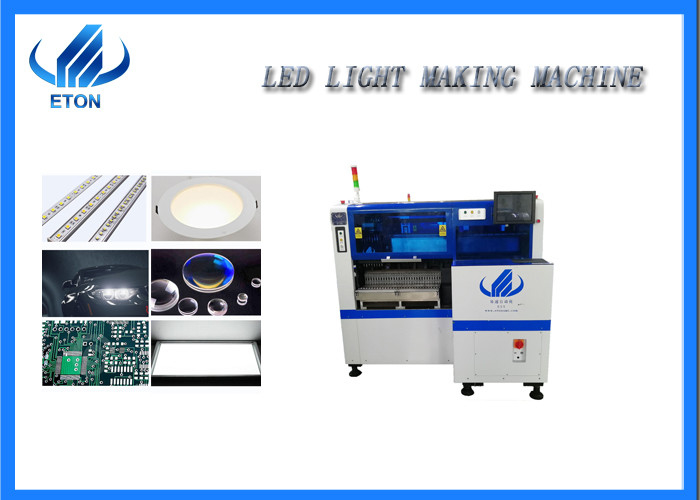

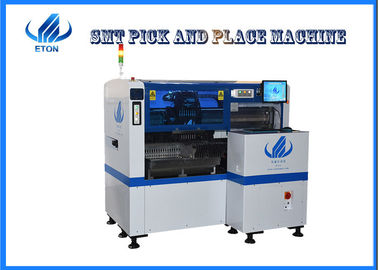

Automatic single mgnetic linear motor smt pick and place machine
details
New economy servo motor high-speed multi-functional pick and place machine, 8 head mounting, eight suction nozzle to pick at the same time, using imported camera visual alignment, MARK correction, improve the SMT stability, precision and pasted on the maximize placement rate, maximum patch speed is 40000CPH, has exclusive patent technology: electronic feeder feeding system, faster and more accurate, non-stop material re-loading system, save time cost and artificial cost. The maximum size of PCB is 500*350mm
Application
Mounting components:LED,capacitors,resistors,
IC,shaped components,etc.
Application: Power driver,electric board,lens,linear bulb,household appliance etc.
features
1. Single module manetic linear motor multifunctional pick and place machine
2. Mounting components:LED,capacitors,resistors,IC,shaped components,etc.
3. Application: power driver.electric board.lens.linear bulb.household appliance etc.
4. Component:min.size 0402 max.height 36 mm.
Patented technology
1. Electronic feeder feeding system: high stable,
2. Vision alignment flight identification,mark correction:high Accuracy
3. Non-stop material re-loading function:high speed
4. Auto-optimization after coordinates generated ,etc.
HT-E5S pick and place machine | ||
PCB | PCB length width | Max:500*350mm min:100*100mm |
PCB thickness | 0.5~3mm | |
PCB clamping | Electric clamping +adjustable pressure pneumatic | |
Mounting mode |
Group to picking and separate to placing Separate to picking and separate to placing
|
|
O.S. | system | Windows7 |
software | R&D independently | |
display | LED monitor | |
Vision system |
Visual camera |
2 sets of imported camera Vision for the flight ide3ntification,mark correction |
Mounting precision | 0.02mm | |
Mounting height | <36mm | |
Transmission direction | Single (left to right or right to left) | |
Drive way | High-end magnetic linear motor +servo motor | |
Feeding system | Feeders station | 30PCS |
nozzles | 8PCS | |
Feeding way | Electric feeder with double motor |
Our Partners
ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.
Attention
1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
