Length*Width*Height: | 1650*1200*1570mm | Total Weight: | 1200kg |
---|---|---|---|
PCB Length Width: | Max:500*350mm Min:100*100mm | Mounting Speed: | 40000 CPH |
No.of Nozzles: | 8PCS | Mounting Height: | <36mm |
High Light: | high speed led mounting machine,smt assembly machine |

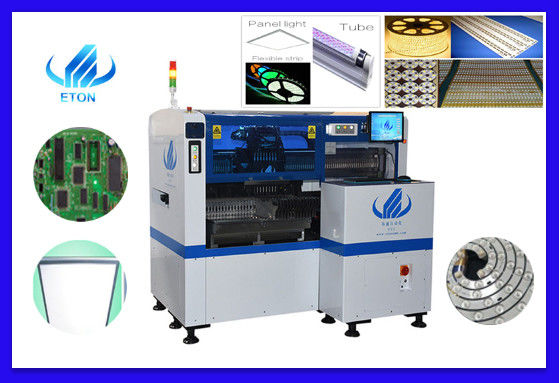

Single module magnetic linear motor multifunctional pick and place machine HT-E5S
Technical parameter | |
Length*Width*Height | 1650*1200*1570mm |
Total Weight | 1200kg |
PCB Length Width | Max:500*350mm Min:100*100mm |
Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
Mounting speed | 40000 CPH |
Components | LED,resistor,capacitors,shaped components,etc. |
power/power consumption | 380AC,50Hz/ 4kw |
No.of Feeders Station | 30PCS |
No.of nozzles | 8PCS |
Mounting Height | <36mm |
Feeding way | Electric feeder with double motor |
No.of Camera | 2 sets of imported camera |
PCB Thickness | 0.5~3mm |
Features
1) Single module magnetic linear motor multifunctional pick and place machine.
2) Mounting components:LED,capacitors,resistors,IC,shaped components,etc.
3) Component:Min.size 0402 Max.height 36mm.
4) Application:Power driver.electric board.lens.linear bulb.household appliance etc.
After-sale Service
We will send our engineer to your factory to install machine and training freely.
We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
