Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Name: | SMT Pick And Place Machine,SMT Chip Mounter |
---|---|---|---|
Application: | SMT Production Line | Condition: | New |
Product Name: | SMT Shooter Machine | Type: | Automatic |

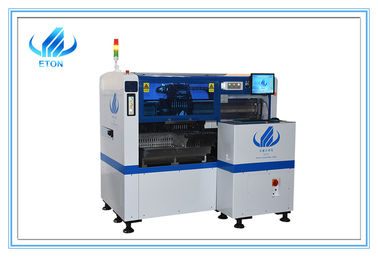

Single module magnetic linear motor multifunctional pick and place machine HT-E5S
Technical parameter | |
Length*Width*Height | 1650*1200*1570mm |
Total Weight | 1200kg |
PCB Length Width | Max:500*350mm Min:100*100mm |
Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
Mounting speed | 40000 CPH |
Components | LED,resistor,capacitors,shaped components,etc. |
power/power consumption | 380AC,50Hz/ 4kw |
No.of Feeders Station | 30PCS |
No.of nozzles | 8PCS |
Mounting Height | <36mm |
Feeding way | Electric feeder with double motor |
No.of Camera | 2 sets of imported camera |
PCB Thickness | 0.5~3mm |
