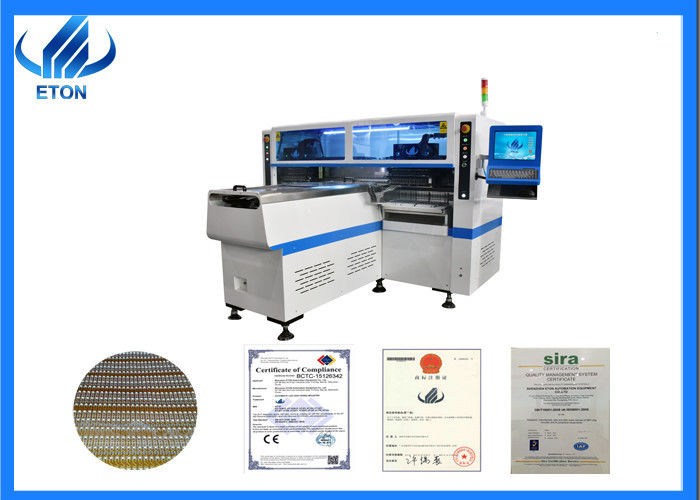

SMT Pick and Place Machine High Speed 200K CPH LED Strip Light Making Machine HT-F9
Machines Window
In order to meet the rapid development of the lighting industry market demand, research and development a high speed placement machine HT-F9. HT-F9 is a high tech special pick and place machine of Eton company. This machine designed for LED tube, panel, strip PCB boards. Using the Eton first group taking and group picking patent technology, a very high speed LED pick and place machine.
HT-F9 Features
w High-end magnetic linear motor + Panasonic Servo Motor
w 64 heads, 64 feeder stations
w Group to pick and group to mount
w Vision alignment, Mark Correction
w Capacity can Reach 200000 CPH
HT-F9 Main parameters
| Dimension |
L*W*H 2700*2285*1550MM |
| Weight |
1400kg |
| Mounting Heads |
64 Heads |
| No. of Feeder Stations |
64 Stations |
| Components |
LED, capacitors, resistors, bridge rectifiers. |
| Mounting Speed |
200000 CPH |
| PCB Size |
Max:1200*330MM Min:100*100MM |
| Power |
380V 50Hz |
| X.Y Axis Driving |
High-end magnetic linear motor + Panasonic servo motor |
HT-F9 Application
HT-F9 is a very high speed pick and place machine. It’s specialized for big quantity production of LED tube light, panel light, strip light.
HT-F9 is for double module, consisting of two modules interact to mount around, each module can be installed nozzle 32, part A or part B can be mounted separately or synchronously.
1) Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
2) How is the training?
After buying our machines, you can send your engineers to our factory, or we send our engineer to your factory, and then we will train your people to operate these machines.
3) It’s hard to use the machine?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
4) Does your machines have quality certificates?
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program.
5) What’s the termsof payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
