Name: | Pick And Place Machine | Application: | Led Lighting And Electrical Board |
---|---|---|---|
Capacity: | 200000 CPH | Brand: | ETON |
Components: | LED, Resistor, Capacitor,ic,shaped Components. | Warranty: | 1 Year |
High Light: | 6KW Led Pcb Making Machine,200000 CPH Led Pcb Making Machine,68 Feeders Smt Assembly Equipment |
Pick and placement machine smt led pcb making machine
Pick and placement machine
Pick and placement machine also called smt machine, chip mounter, placement machine. It is function is using heads and picking the components, like the common led chip, ic, capacitor, etc and placement in pcb, our pick and place machine is totally automatically.
Machine features

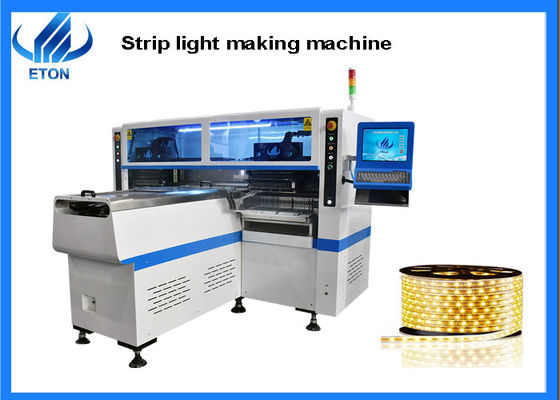

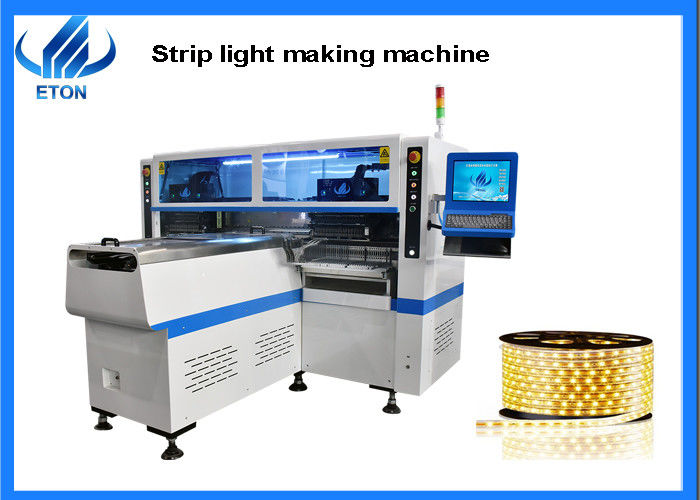

HT-F9 is fastest led pick and place machine in China, HT-F9 is new upgrade base on the old module HT-F7,there are 68 heads and 68 feeder station, adopt group picking and group mounting, it’s speed can be reach 200000 CPH.
Machine parameter
Here are F9 parameters
From Dimension:
2700*2300*1550 mm
From PCB Sizes:
Max PCB size is 1200*330 mm
Min PCB size is 100*100 mm
From Operating system:
Windows7 system, R&D software, Touch screen monitor.
From speed:
68 feeders and 68 nozzles, 200000 cph
If you want to have much machine parameter, please sent our inquiry.
Led lighting products show
F9 apply to 1.2m tube, 0.5m or 1m strip light, normal panel light, etc. Here are some products picture show.
Related machine show
In the smt line, there are not only one pick and place machine, also other related machines, like the stencil printer, dispenser, reflow oven, etc. Here are the related machine show:
Free install and training
Someone might be want to ask will the machine is hard to using for normal workers? To be honest, our machine is really very easy to operate, usually several days for training is enough. If you buy our machine, we will sent engineer to your factory for free install and training.
Choose our machine, sent you free install and training!
