1750mm Height 140000CPH 4KW Pick And Place Equipment

SMD pick and place machine mini machine for led production line

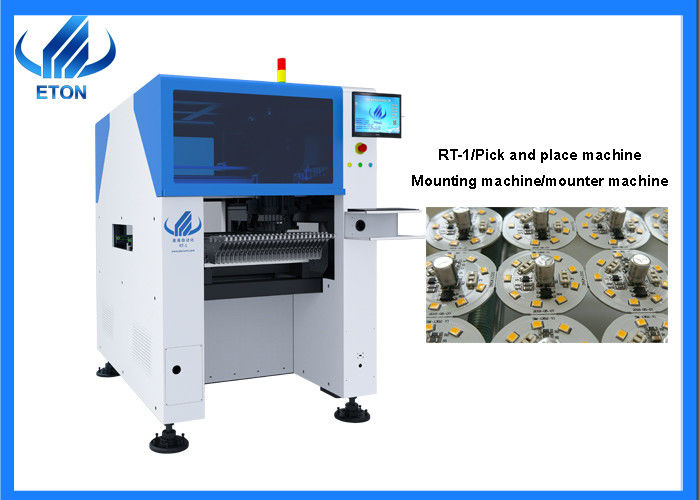

RT-1 led pick and place machine features

RT-1 is one module of led pick and place machine, SMT machine, led chip mounter, placement machine. It can widely using in Led lightings and electrical board.

Machine parameters

There are the multifunctional RT-1 pick and place machine parameters.

1. Dimension: 1200*1930*1750mm
2. Suitable for mounting max PCB is 400*350 mm.
3. Mounting max height is 22 mm.
4. Mounting mode: group picking and separate placing. Separate picking and separate placing.
5. No.of nozzles 10 pcs.
6. Power: 380v.

Machine line design

For RT-1, it is very suitable for mounting big components. Like the Capacitor, Resistors, Ic, etc. It is suitable for making led bulb, display, panel, DOB bulb, etc. Here are the RT-1 automatically line design.

Machine products show

RT-1 suitable for many kind of products, here are the picture.

Certificates

ETON advanced technology and innovation drives the revolution of market repidly, and obtains a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights.

FAQ

1. Can I use RT-1 for making led Tube ?

A: Yes, RT-1 suitable for max PCB size is 1.2M, so it is suitable for making 1.2m led tube.

2. What kind of service I can have, if I buy machine from ETON ?

A: We will give you install and training. It is free for you. And we will sent engineer with you.

Latest news

With the market development, ETON machine have new upgrade, the speed is higher, save space and cost.

Welcome contact us for more machines, we provide the whole smt line machines.
