Product Details:
Payment & Shipping Terms:
|
| Length: | 2700MM | Width: | 2300MM |
|---|---|---|---|
| Height: | 1550MM | Weight: | 1700KG |
| Power: | 380AC 50Hz | Power Consumption: | 6KW |
| Mounting Precision: | 0.02mm | Speed: | 200K CPH |
| High Light: | 6KW LED Strip Chip Mounter,0.02mm LED Strip Chip Mounter,200K CPH LED Chip Mounter |
||

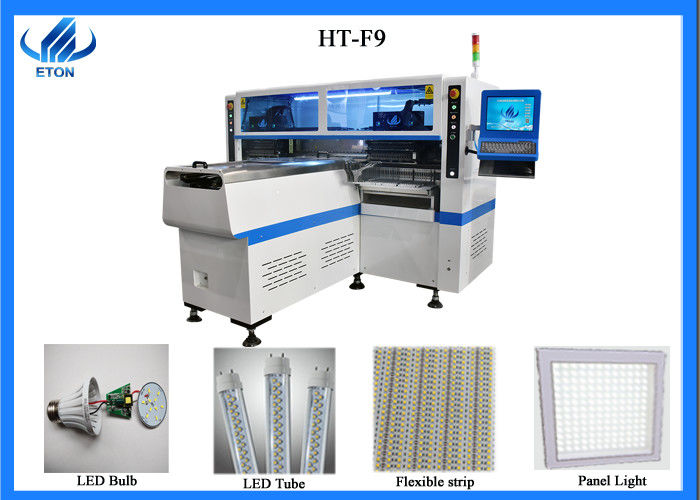

LED Strip Light Chip Mounter Machine HT-F9 SMT LED Production Line
Machines Window
In order to meet the rapid development of the lighting industry market demand, research and development a high speed placement machine HT-F9. HT-F9 is a high tech special pick and place machine of Eton company. This machine designed for LED tube, panel, strip PCB boards. Using the Eton first group taking and group picking patent technology, a very high speed LED pick and place machine.
HT-F9 Features
w High-end magnetic linear motor + Panasonic Servo Motor
w 64 heads, 64 feeder stations
w Group to pick and group to mount
w Vision alignment, Mark Correction
w Capacity can Reach 200000 CPH
HT-F9 Main parameters
| Dimension | L*W*H 2700*2285*1550MM |
| Weight | 1400kg |
| Mounting Heads | 64 Heads |
| No. of Feeder Stations | 64 Stations |
| Components | LED, capacitors, resistors, bridge rectifiers. |
| Mounting Speed | 200000 CPH |
| PCB Size | Max:1200*330MM Min:100*100MM |
| Power | 380V 50Hz |
| X.Y Axis Driving | High-end magnetic linear motor + Panasonic servo motor |
The process of LED strip light making
