Product Details:
Payment & Shipping Terms:
|
PCB Length Width: | Max:400*350mm Min:50*50mm | Max Tape Feeder Capacity: | 32 |
---|---|---|---|
Max Placement Rate: | 35000CPH | Component Range: | Smallest Size 0402, Max Height 22mm |
Length: | 1200MM | Width: | 1930MM |
Height: | 1750MM | Total Weight: | 2200KG |
High Light: | 10 Heads SMT Chip Mounter,1930MM Width SMT Chip Mounter,35000CPH LED Assembly Line Machine |

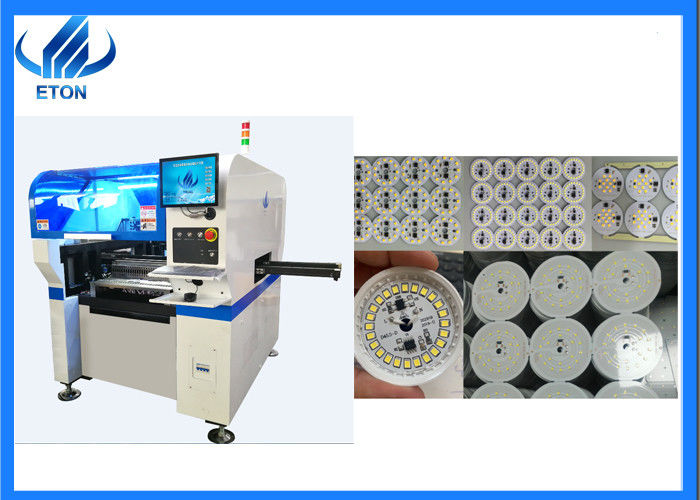

ETON High Speed 10 Heads LED Assembly Line SMT Pick And Place Machine Chip Mounter For PCB Placement
Advantage:
1. Fast speed. 10 heads, with magnetic levitation, running faster
2. High precision. 2 sets of imported cameras, high CCD resolution, 0.01MM
3. Less energy consumption. Power is only 4kw
Technical parameter:
Max Placement Rate | 35000CPH |
Max Tape Feeder Capacity | 32 |
PCB Length Width | Max:400*350mm Min:50*50mm |
Component Range | Smallest Size 0402 |
Max Height 22mm | |
Length | 1200MM |
Width | 1930MM |
Height | 1750MM |
Total Weight | 2200KG |
Main process of SMT Line for DOB manufacturing
Step one: Print Solder paste on PCB
Step two: Mounting LED chip and capacitor big components on PCB.
Step three: Heating solder paste with PCB to welding together the component with PCB.
Different type of DOB PCBA
The PCBA of Linear bulbs
RT-1 SMT line not only suitable for DOB and bulb, but also suitable for many other products.
Production line:
Step one: Using Solder printing machine to Print Solder paste on PCB.
Step two: Using pick and place machine to mount LED chip and capacitor big components on PCB.
Step three: Using reflow oven to heat solder paste with PCB to welding together the component with PCB.
Our clients:
Our main customer in are covered in: In India, In Turkey, In Vietnam, In Egypt, In Tunis
In India: SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, CENTURY LED, AUTOPAL, SKYQUAD, NTL, KONARK, CEPL, FLARE, SLS are one of our large customers.
In Turkey: ACK, KENDAL, KING LED are one of our large customers.
In Vietnam: Rang Dong, TAMKIM are one of our large customers.
In Egypt: UNISTAR is one of our large customers
In Tunis: SKY INDUSTRIES, FAWANIS are one of our large customers
And so on.......
Certificate
With the effort with our team, we gained these reward: Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2015 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
We provide service as follow
1.We’ll have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
5.Engineers available to service machinery overseas
