Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | System: | Windows7 |
|---|---|---|---|
| Dimension: | 2550*1650*1550mm | Software: | R&D Independently |
| Total Weight: | 1250kg | Nozzles: | 8PCS |
| Warranty: | 1 Year | Speed: | 40000CPH |
| Feeders: | 30 PCS | ||
| High Light: | 40000CPH Led Bulb Making Machine,Led Bulb Making Machine CCC,36mm Height Smt Assembly Machine |
||

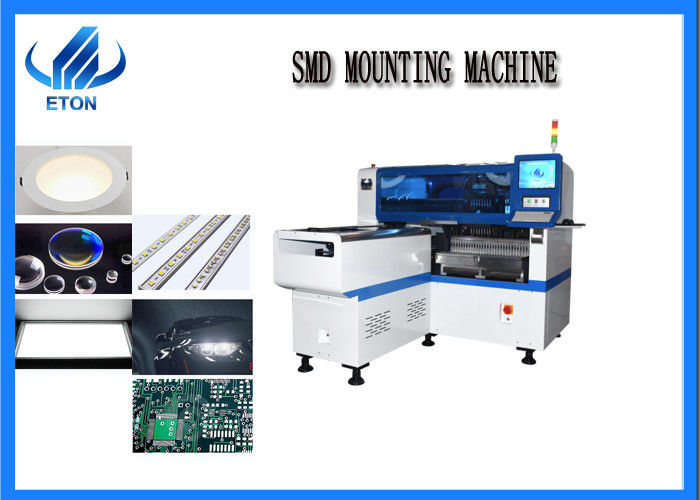

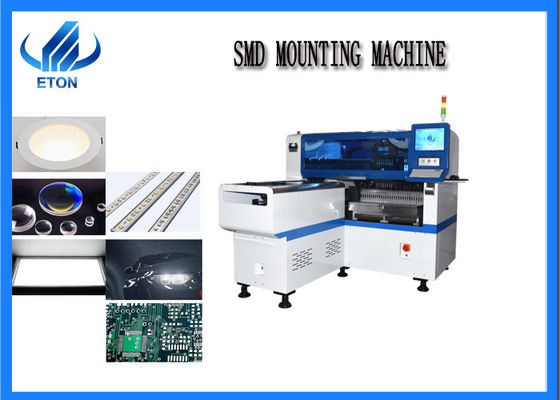

Multi Functional Led Bulb making Machine Automatic Smt Assembly Machine line
1.With the rapid development of the LED industry, the automation equipment products, quality requirements are higher.
2.ETON automation launched HT-E8S automatic multi-functional pick and place machine, 3.HT-E8S placement machine imported from Japan precision screw + linear guide rail + servo motor+linear motor.
4.equipped with MARK point positioning vision + device recognition function.
5.The pursuit of high-speed completion of the mounting, while fully ensuring the stability of high-speed operation of the equipment, is a cost-effective LED multi-functional placement machine.
Exclusive patented technology
Electronic feeder feeding system
Vision alignment flight identification,mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated ,etc.
Application
Mounting components:LED,capacitors,resistors,IC,shaped components,etc.
Component:min.size 0402 max.height 36 mm.
Application: power driver.electric board.lens.linear bulb.household appliance etc.
| HT-E8S | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
FAQ:
Q : Is there any quality guarantee?
We stick to quality first, client-oriented, Continuous improvement!
Q: What is SMT Machine?
This is an LED lamp patch machine using surface mount technology.
Q: What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
Q: What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q: How about your operating system?
The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
