0.01mm CCD 32 Feeders Pcb Chip Mounter 30000CPH ETON RT-1

Name: 0.01mm CCD 32 Feeders Pcb Chip Mounter 30000CPH ETON RT-1
Brand: ETON
SKU: RT-1
Price: 26000 USD
Availability: InStock
Rating: 5 (188 reviews)

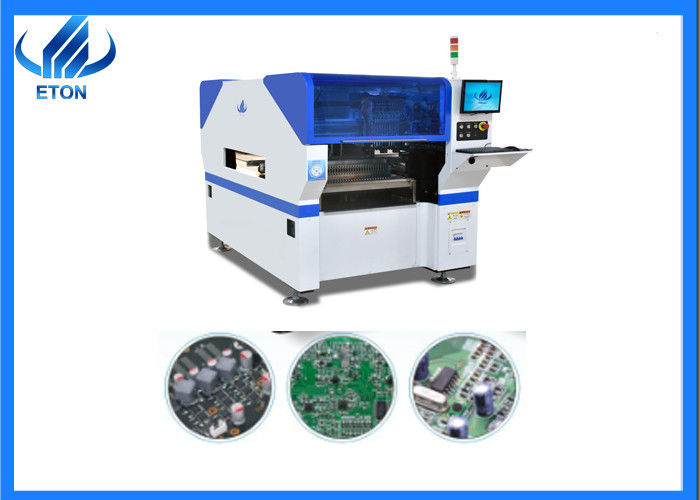

Large Image : 0.01mm CCD 32 Feeders Pcb Chip Mounter 30000CPH ETON RT-1

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CE , ISO , CCC
Model Number:	RT-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 26000~48000
Packaging Details:	Vacuum wooden packing
Delivery Time:	15-30 days
Payment Terms:	T/T
Supply Ability:	50 Unit per mouth

Contact Now

Detailed Product Description

Dimension:	120019301750mm	PCB Size:	5050---400350mm
PCB Thickness:	0.1---6mm	Mounting Speed:	30000--35000 CPH
Mounting Mode:	Group Picking And Separate Placing, Separate Picking And Separate Placing	XYZ Axis Drive Way:	Magnetic Linear Motor
High Light:	SMT Pcb Chip Mounter 30000CPH , 32 Feeders Pcb Chip Mounter , 0.01mm CCD Chip Mounter Machine

LED Pick and place machine RT-1 / SMT PCB production line LED mounter

Characteristics

Magnetic linear motor multifunctional pick and place machine.

Mounting components: LED, capacitors, resistors, IC, shaped components, etc.

Application: DOB, LED bulb, LED strip, LED tube, lens, Power driver, Electric board, etc.

Support mounting over 22mm high components, very suitable for DOB mounting.

Electronic feeder feeding system.

Vision alignment flight identification, Mark correction.

Auto-optimization after coordinates generations, etc.

Technical parameter:

Model number	RT-1
Dimension	120019301750mm
PCB size	5050---400350mm
PCB thickness	0.1---6mm
Mounting speed	30000--35000 CPH
Mounting mode	Group picking and separate placing, Separate picking and separate placing
CCD resolution	0.01mm
Feeders station	32
Nozzles	10
Mounting height	<=25mm
No of camera	2 sets of imported camera
Components space	0.2mm
XYZ axis drive way	Magnetic linear motor
Feeding way	Electric feeder with double motor

Main process of SMT Line for DOB manufacturing

Step one: Print Solder paste on PCB

Step two: Mounting LED chip and capacitor big components on PCB.

Step three: Heating solder paste with PCB to welding together the component with PCB.

0.01mm CCD 32 Feeders Pcb Chip Mounter 30000CPH ETON RT-1 0

Different type of DOB PCBA

0.01mm CCD 32 Feeders Pcb Chip Mounter 30000CPH ETON RT-1 1

The PCBA of Linear bulbs

0.01mm CCD 32 Feeders Pcb Chip Mounter 30000CPH ETON RT-1 2

RT-1 SMT line not only suitable for DOB and bulb, but also suitable for many other products.
