45000CPH 10 Nozzles 25mm Height SMT Chip Shooter RT-1

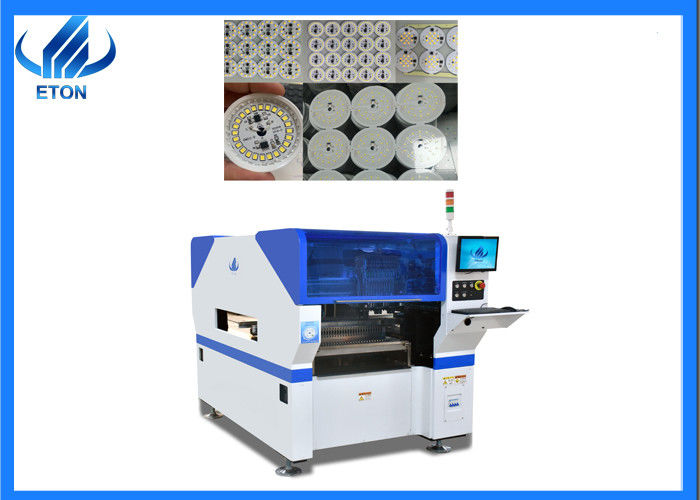

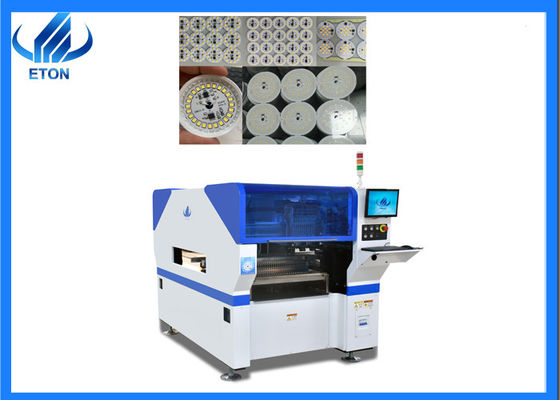

Large Image : 45000CPH 10 Nozzles 25mm Height SMT Chip Shooter RT-1

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CE , ISO , CCC
Model Number:	RT-1
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 26000~48000
Packaging Details:	Vacuum wooden packing
Delivery Time:	15-30 days
Payment Terms:	T/T
Supply Ability:	50 Unit per mouth

Contact Now

Detailed Product Description

LengthWidthHeight:	110415841655mm	Total Weight:	950kg
PCB Length Width:	Max:400350mm Min:5050mm	Mounting Precision:	±0.02mm ,Vision Alignment, Mark Vision
Mounting Speed:	45000 CPH	Components:	LED,resistor,capacitors,shaped Components,etc.
Highlight:	25mm Height SMT Chip Shooter , 10 Nozzles SMT Chip Shooter , 45000CPH LED Bulb Chip Mounter

PCB SMT equipment ETON RT-1 SMT pick and place machine

Technical parameter
LengthWidthHeight	110415841655mm
Total Weight	950kg
PCB Length Width	Max:400350mm Min:5050mm
Mounting Precision	±0.02mm ,Vision alignment, Mark vision
Mounting speed	45000 CPH
Components	LED,resistor,capacitors,shaped components,etc.
power/power consumption	380AC,50Hz/ 6kw
No.of Feeders Station	32 PCS
No.of nozzles	10 PCS
Mounting Height	<25mm

Main process of SMT Line for DOB manufacturing

Step one: Print Solder paste on PCB

Step two: Mounting LED chip and capacitor big components on PCB.

Step three: Heating solder paste with PCB to welding together the component with PCB.

45000CPH 10 Nozzles 25mm Height SMT Chip Shooter RT-1 0

Different type of DOB PCBA

45000CPH 10 Nozzles 25mm Height SMT Chip Shooter RT-1 1

The PCBA of Linear bulbs

45000CPH 10 Nozzles 25mm Height SMT Chip Shooter RT-1 2

RT-1 SMT line not only suitable for DOB and bulb, but also suitable for many other products.

Client & Transportation & Parking :

ETON got large market share in USA , KOREA , INDIA , GERMANY , EGYPT , TURKEY , VIETNAM , TUNISIA , THAILAND more than 20 countries.

Our packing method is vacuum wooden case packing.

Supporting sea, air and land transportation.

We provide service as follow:

1.We’ll have a good check and a test before shipping out.

2. We provide you the friendly English User manual or the operating videos for free;

3. 24 hours technical support by email or Skype or Trade Manager or Calling.

4. 1 year machine parts free warranty;

5.Engineers available to service machinery overseas
