SMT 8 Heads 4kw 45000CPH Pick and Place Machine 6mm PCB

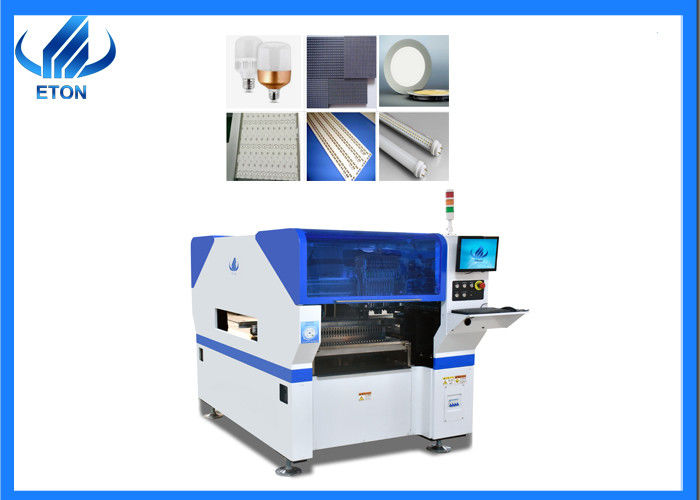

Large Image : SMT 8 Heads 4kw 45000CPH Pick and Place Machine 6mm PCB

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CE , ISO , CCC
Model Number:	RT-1
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 26000~48000
Packaging Details:	Vacuum wooden packing
Delivery Time:	15-30 days
Payment Terms:	T/T
Supply Ability:	50 Unit per mouth

Contact Now

Detailed Product Description

LengthWidthHeight:	110415841655mm	Total Weight:	950kg
No.of Feeders Station:	32 PCS	No.of Nozzles:	10 PCS
Feeding Way:	Electric Feeder With Double Motor	No.of Camera:	2 Sets Of Imported Camera
Highlight:	45000CPH Pick and Place Machine , 4kw Pick and Place Machine , 6mm PCB LED Chip Mounter

PCB SMT equipment ETON RT-1 SMT pick and place machine

Advantage:

1. Fast speed. 10 heads, with magnetic levitation, running faster

2. High precision. 2 sets of imported cameras, high CCD resolution, 0.01MM

3. Less energy consumption. Power is only 4kw

Technical parameter
LengthWidthHeight	110415841655mm
Total Weight	950kg
PCB Length Width	Max:400350mm Min:5050mm
Mounting Precision	±0.02mm ,Vision alignment, Mark vision
Mounting speed	45000 CPH
Components	LED,resistor,capacitors,shaped components,etc.
power/power consumption	380AC,50Hz/ 6kw
No.of Feeders Station	32 PCS
No.of nozzles	10 PCS
Mounting Height	<25mm
Feeding way	Electric feeder with double motor
No.of Camera	2 sets of imported camera
PCB Thickness	0.1~6mm

Main process of SMT Line for DOB manufacturing

Step one: Print Solder paste on PCB

Step two: Mounting LED chip and capacitor big components on PCB.

Step three: Heating solder paste with PCB to welding together the component with PCB.

SMT 8 Heads 4kw 45000CPH Pick and Place Machine 6mm PCB 0

Different type of DOB PCBA

SMT 8 Heads 4kw 45000CPH Pick and Place Machine 6mm PCB 1

The PCBA of Linear bulbs

SMT 8 Heads 4kw 45000CPH Pick and Place Machine 6mm PCB 2

RT-1 SMT line not only suitable for DOB and bulb, but also suitable for many other products.

If you need more information about the following please fill in the form below:

1. Ask for quotation

2. Our company

3. Related products

4. Product customization

5. Product details

SMT 8 Heads 4kw 45000CPH Pick and Place Machine 6mm PCB 3

Add: If you have any other questions, please do not hesitate to contact us, we will serve you wholeheartedly 24 hours!
