Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | PCB Thickness: | 0.5~5 Mm |
|---|---|---|---|
| Dimension: | 2550*1650*1550mm | Warranty: | 1 Year |
| PCB Size: | 400*350mm | Total Weight: | 1250kg |
| Nozzles: | 10 PCS | Feeders: | 26 PCS |
| High Light: | 35000CPH Flexible Strip Smt Mounter,5mm PCB Flexible Strip Smt Mounter,6kw LED 0201 Smt Mounter |
||

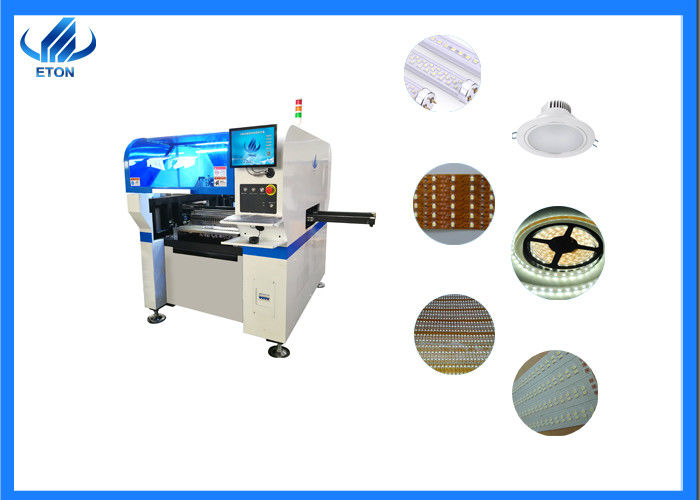

0201 flexible strip light high capacity pick and place machine cost
Easy operation system:
Easy maintenance: it is very easy to maintain with its simple operation system. The maintenance cost is very low.
The software, PCB board and other components are developed by ETON ,with independent intellectual property rights.
Features
1.Integrated flying vision system
2.Servo driven, position feedback from 2 micron linear scales coupled with a precision placement head
3.10 Simultaneous pick-up head
4.Placement rates up to 14,000 cph
5.The GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
6.Accurately place, manager, and track components with Smart Feeders
7.Accurately places a wide range of components including 0402, LED, BGA,0.4mm pitch QFP,SMT Connectors and many others
| RT-1 | ||
| PCB | PCB length width | Max:400*350mm min:50*50mm |
| PCB thickness | 0.1~6mm | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
|
Vision system |
No.of camera |
2 sets of imported camera Vision alignment ,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <25mm | |
| Mounting speed | 30000~35000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 6KW | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding system | No.of feeders station | 26 PCS |
| No.of nozzles | 8 PCS | |
components
LED,capacitors,resistors,IC,lens ,shaped components,etc.
Product Applications
LED house lighting: LED tube, LED bulb, LED ceiling light, led panel, led candle light
LED lighting product: soft led strip, led strip, led module
LED screen.
Before services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
Production line layout
Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
Q: What is your payment terms?
100% payment before delivery
or 50% deposit in advance and the rest before shipment.
Q: How is the warranty?
1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.
2. The complete machine has a warranty period of 18 months from delivery and lifetime maintenance service.
3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
Q:Why choose us?
ETON is the famous brand for high-end pick and place machine. We have professional R&D team, providing 24 hours quick response after-sales service.
