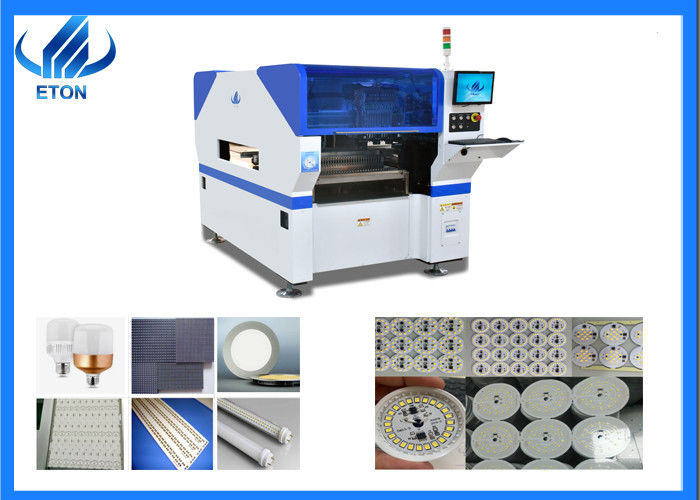

10 Heads RT-1 6kw 45000CPH SMT Led Chip Mounter 25mm Height

Large Image : 10 Heads RT-1 6kw 45000CPH SMT Led Chip Mounter 25mm Height

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CE , ISO , CCC
Model Number:	RT-1
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 36000
Packaging Details:	Vacuum wooden packing
Delivery Time:	15-30 days
Payment Terms:	T/T
Supply Ability:	50 Unit per mouth

Contact Now

Detailed Product Description

No.of Feeders Station:	32 PCS	No.of Nozzles:	10 PCS
LengthWidthHeight:	110415841655mm	Total Weight:	950kg
PCB Length Width:	Max:400350mm Min:5050mm	Mounting Speed:	45000 CPH
Highlight:	45000CPH SMT Led Chip Mounter , Led Chip Mounter 25mm Height , 6kw 10 Heads SMT Mounter

PCB SMT equipment ETON RT-1 SMT pick and place machine

Technical parameter
LengthWidthHeight	110415841655mm
Total Weight	950kg
PCB Length Width	Max:400350mm Min:5050mm
Mounting Precision	±0.02mm ,Vision alignment, Mark vision
Mounting speed	45000 CPH
Components	LED,resistor,capacitors,shaped components,etc.
power/power consumption	380AC,50Hz/ 6kw
No.of Feeders Station	32 PCS
No.of nozzles	10 PCS
Mounting Height	<25mm

Main process of SMT Line for DOB manufacturing

Step one: Print Solder paste on PCB

Step two: Mounting LED chip and capacitor big components on PCB.

Step three: Heating solder paste with PCB to welding together the component with PCB.

10 Heads RT-1 6kw 45000CPH SMT Led Chip Mounter 25mm Height 0

Different type of DOB PCBA

10 Heads RT-1 6kw 45000CPH SMT Led Chip Mounter 25mm Height 1

The PCBA of Linear bulbs

10 Heads RT-1 6kw 45000CPH SMT Led Chip Mounter 25mm Height 2

RT-1 SMT line not only suitable for DOB and bulb, but also suitable for many other products.

Attention:

1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;

2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.

3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;

4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner
