Product Details:
Payment & Shipping Terms:
|
| Length*Width*Height: | 1104*1584*1655mm | Total Weight: | 950kg |
|---|---|---|---|
| PCB Length Width: | Max:400*350mm Min:50*50mm | Mounting Speed: | 45000 CPH |
| Components: | LED,resistor,capacitors,shaped Components,etc. | Power Consumption: | 380AC,50Hz/ 6kw |
| High Light: | 45000 CPH Smt Chip Shooter,6kw Smt Chip Shooter,CCC Pcb Production Line Machine |
||

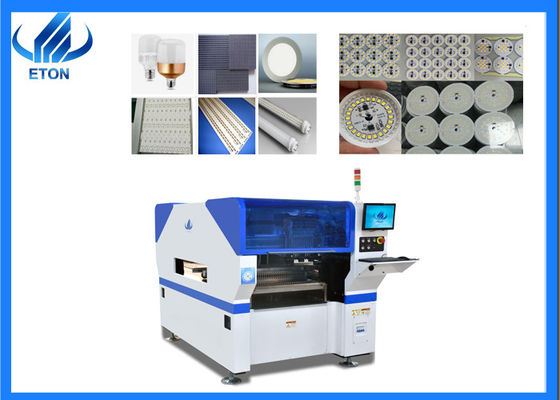

SMT professional LED pick and place machine smt chip shooter for pcb production line RT-1
| Technical parameter | |
| Length*Width*Height | 1104*1584*1655mm |
| Total Weight | 950kg |
| PCB Length Width | Max:400*350mm Min:50*50mm |
| Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
| Mounting speed | 45000 CPH |
| Components | LED,resistor,capacitors,shaped components,etc. |
| power/power consumption | 380AC,50Hz/ 6kw |
| No.of Feeders Station | 32 PCS |
| No.of nozzles | 10 PCS |
| Mounting Height | <25mm |
Main process of SMT Line for DOB manufacturing
Step one: Print Solder paste on PCB
Step two: Mounting LED chip and capacitor big components on PCB.
Step three: Heating solder paste with PCB to welding together the component with PCB.
Different type of DOB PCBA
The PCBA of Linear bulbs
RT-1 SMT line not only suitable for DOB and bulb, but also suitable for many other products.
Company Introduction:
Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.
Exclusive patented technology:
1. Electronic feeder feeding system
2. Vision alignment flight identification,Mark correction
3. Non-stop material re-loading function
4. Auto-optimization after coordinates generated,etc
Our service:
1. Quick response within 24 hours;
2. Offer free spare parts and service within one year of warranty .
3. Technology Support :We will send our engineer to your factory to install machine and training freely ; Provide Demo operation video for training show you the operation .
4. Good and professional after-sales service.
