Mounting Precision: | ±0.02mm ,Vision Alignment, Mark Vision | PCB Length Width: | Max:400*350mm Min:50*50mm |
---|---|---|---|
Mounting Speed: | 45000 CPH | Components: | LED,resistor,capacitors,shaped Components,etc. |
Power/power Consumption: | 380AC,50Hz/ 6kw | No.of Nozzles: | 10 PCS |
High Light: | Middle Speed Pick And Place Mounter,10 Heads Pick And Place Mounter,45000CPH Lens SMT Chip Mounter |

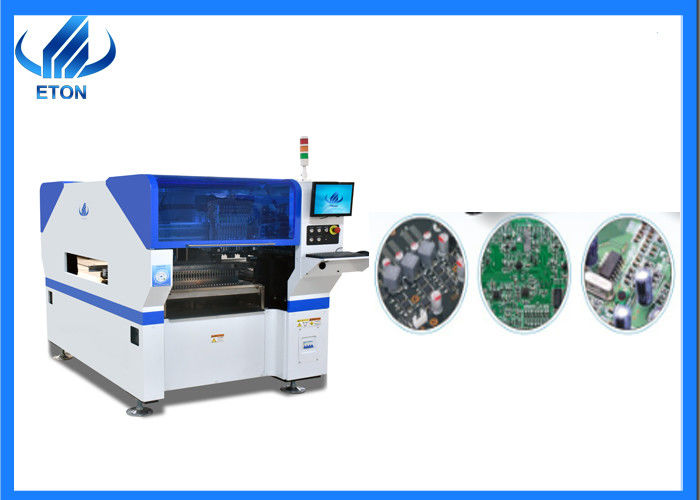

10 Heads Middle Speed lens pick and place machine Mounter RT-1
Technical parameter | |
Length*Width*Height | 1104*1584*1655mm |
Total Weight | 950kg |
PCB Length Width | Max:400*350mm Min:50*50mm |
Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
Mounting speed | 45000 CPH |
Components | LED,resistor,capacitors,shaped components,etc. |
power/power consumption | 380AC,50Hz/ 6kw |
No.of Feeders Station | 32 PCS |
No.of nozzles | 10 PCS |
Mounting Height | <25mm |
Main process of SMT Line for DOB manufacturing
Step one: Print Solder paste on PCB
Step two: Mounting LED chip and capacitor big components on PCB.
Step three: Heating solder paste with PCB to welding together the component with PCB.
Different type of DOB PCBA
The PCBA of Linear bulbs
RT-1 SMT line not only suitable for DOB and bulb, but also suitable for many other products.
High-precision printing, the first pass in SMT production
High-precision printing, the first pass in SMT production
SMT printing is the first process of the surface mount production line. The quality of the SMT printing has a very significant impact on the pass rate of SMT products. An important factor that affects the printing quality of solder paste is the accuracy of the motion control of various parts of the printing press. At present, the production of SMT products is developing toward high output rates and "zero defects". High-speed operation, which puts high requirements on the speed, stability and reliability of its motion control system. The innovative technologies of the majority of printing and assembly manufacturers are constantly challenging the limits of quality and production efficiency.
