Product Details:
Payment & Shipping Terms:
|
| Speed: | 150000-170000CPH | Size: | 2700*2450*1530mm |
|---|---|---|---|
| Weight: | 1600kg | Warranty: | 1 Year |
| Mounting Height: | ≤5mm | Delivery: | 15-30 Days |
| High Light: | 170000CPH LED Panel Light Mounter,5KW LED Panel Light Mounter,CCC PCB Smt Mounter Machine |
||

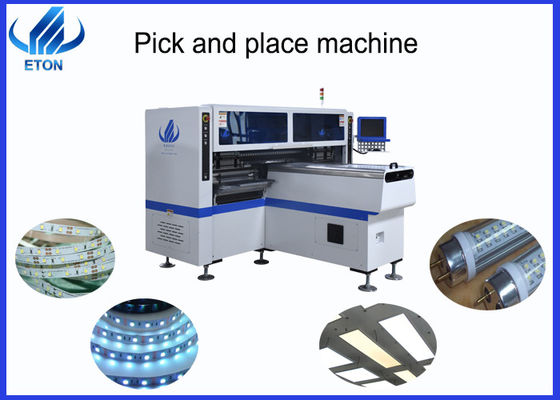

PCB pick and place machine high precision LED flexible making machine with good stable
Product Parameter
| Dimension | 2700*2450*1530mm | |
| Total weight | 1400kg | |
| PCB | size |
Max:1200*330mm Min:50*50mm |
| Thickness | 0.1-6mm | |
| Clamping | Mounting clamping | |
| Mounting mode | Group picking and separate placing,separate picking and separate placing. | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | Touch screen monitor | |
| Input device | Keyboard,mouse | |
| Vision system | camera | 5 PCS digital camera |
| Mounting precision | 0.02mm | |
| Mounting element height | ≤5mm | |
| Mounting speed | 150000-170000 CPH | |
| Components | LED3014/3020/3528/5050 and capacitor,resistors,bridge rectifiers,etc. | |
| Components space | 0.2mm | |
| Feeder station | 68 PCS | |
| Nozzles | 34 PCS | |
Product features
1. The machine Mainly for half meter and 1 meter flexible light,Tubes and panel lights can also be mounted.
2. The mounting head is respectively in the left and right groups, each group has 17 nozzles.
3. Calibration automatically,high precision,available for RGB.
4. Exclusive patent technology:Group to pick and group to mount
Mounting product
Introducing brand
ETON is committed to the development and production of LED high-speed SMT machine, multifunctional SMT machine, automatic SMT machine, and has obtained a number of national patent certificates.
Our Industry Park
The factory belonging to our company has been successfully built, equipped with advanced processing and manufacturing centers, scientific research buildings, exhibition halls, etc., to ensure quality from the source and further standardize production processes
Package and delivery
❆Standard export vacuum waterproof package
❆Strong wooden package for ensure safely delivery of heavy and large equipment
❆Delivery:By air,sea and railway.
Payment and service
Our company Products
Our company produces high-speed machines, multi-function machines and SMT machines
FAQ
Q:Is it safe during the delivery?
A:All the machine is packed safely,by standard strong wooden carton with vacuum package.
Q:What is your transportation?
A:Sea transportation,land carriage and air transportation is OK.
Q:4.How is your training?
A:We will send our engineer to your factory to install machine and training freely.If client is India,we have service office in India,can support quickly.
Q:If I have no experience,The machine is easy to use?
A:Yes,our machine is designed to use easily,usually 3 to 5 days to learn how to operate.
