Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Length: | 1200mm |
|---|---|---|---|
| Width: | 1930mm | Height: | 1500mm |
| Optimum: | 30000-35000 CPH | Feed Way: | Electric Feeder With Double Motor |
| High Light: | 1930mm Width Pick And Place Machine,Pick And Place Machine 50*50mm Pcb,35000CPH LED Linear Bulb Mounter |
||

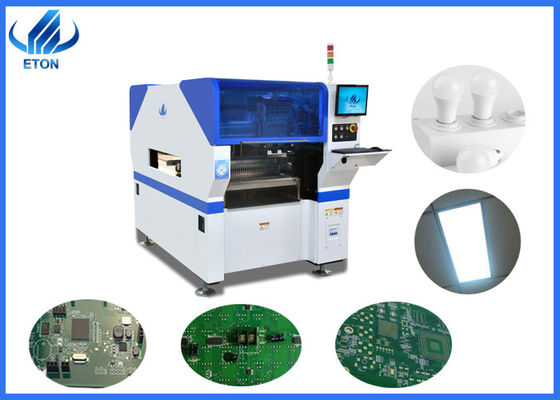

Introducing machine
The Machines are mounted in different ways:Group picking and separate placing,separate picking and separate placing.So Suitable for mounting different product : high components and small board products.
Product application
Technical Parameter
| Technical parameter | |
| Dimension | 1200*1930*1500mm |
| PCB size |
MAX:400*350MM MIN:50*50MM |
| PCB clamping | Electric clamping |
| Mounting precision | ±0.04mm |
| Mounting element height | ≤22mm |
| Mounting speed | 30000-35000 CPH |
| Feeding way | Electric feeder with double motor |
| No.of feeders station | 32 PCS |
| No.of nozzles | 10 PCS |
Mounting Height
The mounting height of the multi-function machine can reach 22mm, so it is suitable for the mounting of shaped components
The structure of multi-function machine
| Structure | Single arm |
| camera | 2 cameras per module |
| The head space | 18 mm ,can't be adjusted |
| The feeders station space | 18 mm,can't be adjusted |
Operate system
Exclusive patented technology
Company information
ETON is the largest high-tech manufacturer in China with stronge capability of design.And we have our own Industrial Park,which equipped with an advance processing and manufacturing center.
Certification of Company
We have obtained many certificates,the top brand company with CCC,CE,SIRA.
Date of delivery
Within 30 days after receiving the deposit.
Warranty:
Our standard warranty period is one year, during which parts can be replaced for an annual fee.
Kind of package
We use Vacuum packing and outer packing is wooden case packing
Type of transportation
Supporting Maritime transport,land transport and air transportation
FAQ
Q:Are you a manufacturer or trading company?
A:Our company integrated with R&D,manufacturing,sales and service.
Q:How is your service?
A :We will send our engineer to your factory to install machine and training freely.
Q:How can I withdraw the quality of your machine?
A:We have certificates of CE,quality management certificate,and rated as "2015 LED Technology Innovation Aware'',''Double soft enterprise''.
Q:It's hard to use the machine?
A:Not at all.usually3 to 5 days is enough to learn to operate the machine.
