Product Details:
Payment & Shipping Terms:
|
| Speed: | 200000~250000CPH | Size: | 2700*2300*1550mm |
|---|---|---|---|

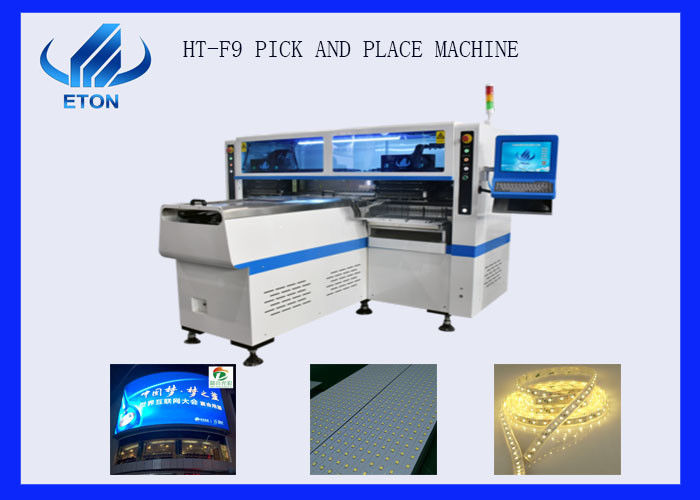

| Name: | HT-F9 Pick And Place Machine | Weight: | 1700kg |
| Warranty: | 1 Year | Delivery: | 15~30 Days |
| High Light: | 250000CPH Pick And Place Mounter,SIRA Pick And Place Mounter,5mm Height LED SMT Mounter |
||
Production features
1.It can producing 4 types materials at the same time, capacity reach 200000 CPH.
2.It has high precision. Available for board with any proportion of LED chip and resister.
3.We have exclusive patent technology: Group to take and group to mount.
Production introduce
Our machine is very stable, the breakdown rate is less than 0.001.Machine is easy to operate, usually 3to 5 days training of operating is enough. The machine have 68 heads, four module. Very high speed, the speed is around 200000 to 250000 CPH. It is very suitable for tube, panel, flexible strip, ect.
Applcation area
HT-F9 SMT pick and place apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. available for board with any proportion of LED chip and resister.
Thchnical paremeter
| PCB Clamping | Adjustable pressure pneumatic | |
| System | Windows 7 | |
| No. of Camera | 5 PCS, Vision alignment, Mark correction | |
| Mounting Precision | ±0.02mm | |
| Mounting element height | ≤5mm | |
| Operating Environment | 23℃±3℃ | |
| Components Space | 0.5mm | |
| No. of nozzles | 68 PCS | |
| No. of Feeders Station | 68 PCS | |
| Feeding way | Electric feeder with double motor | |
Corporate information
ETON is the largest manufacturer of high speed pick and place machine.We start from 2011,around 10 years. We have around 50000 square meter industrial manufacturing part and around 300person in company.
Exhibition information
Our company has a very strong strength,has been to India, Thailand,Pakistan, and other countries.
Transport
Support sea, land and air transportation.
After-sales service
we will send our engineer to your factory to install machine and training freely.
Can support quickly.
Standard warranty is one year, during warranty, any part need to be repaired and replaced will be free.
Packaging
Adopt vacuum packing, outer packing adopt wooden case.
FAQ
Q1:How is the breakdowm rate of machine?
A1:our machine is very stable, the breakdown rate is less than 0.001.
Q2:Is your software interface in English?
A2:Yes, our machine have English interface and Chinese interface.
Q3:Machine is easy to operate?
A3:Of course, the machine is easy to operate, usually 3 to 5 days training of operating is enough.
