Product Details:
Payment & Shipping Terms:
|
| PCB Max Size: | 400*300mm | PCB Thickness: | 0.1-6mm |
|---|---|---|---|
| Dimension: | 1195*1930*1500mm | Speed: | 60000-70000 CPH |
| System: | Windows 7 | Software: | R&D Independently |
| Display: | Touch Screen Monitor | Input Device: | Keyboard,Mouse |
| High Light: | 6000cph LED Bulb Making Machine,CCC LED Bulb Making Machine,6mm PCB Pick And Place Machine |
||
SMT pick and place machine LED bulb making machine with high efficiency highspeed

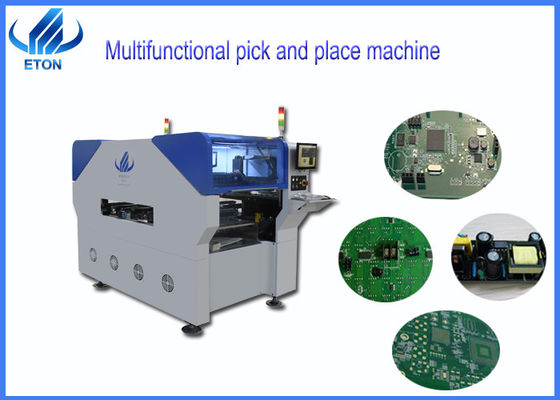

Introducing machine of RT-2
This is a double module magnetic linear motor multifunctional pick and place machine.Its largest PCB board size is 400*300mm, suitable for mounting parts such as LED, capacitors, resistors, IC, shaped components (max:17mm,min:0402).
Machine parameter
| Length*width*height | 1195*1930*1500mm |
| PCB length width |
Max:400*300mm Min:50*50mm |
| PCB clamping | Electric clamping |
| Mounting Mode | Group picking and separate placing,separate picking and separate placing |
| Camera |
4 PCS Vision alignment,Mark correct |
| Mounting precision | ±0.04mm |
| Mounting element height | ≤22mm |
| Feeding way | Electric feeder with double motor |
Machine advantage
This is multifunctional machine RT-2 with double module,total 64 feeders station,each part 32 feeder station,total 20 head,each part 10 head.It is medium speed machine,the optimum speed is 60000--70000 CPH.
Application of machine
This machine RT-2 is suitable for a variety of products, such as bulbs, panel lights, drivers, downlights, DOB, etc., The placement method of this machine is group picking and splitting, splitting and splitting,because each head is controlled by an independent motor.
Introducing company
Certification of ETON
Our company has obtained CCC, CE, SIRA certificates, and not only these, our company has successively won the National High-tech Enterprise, 2015 LED Technology Innovation Award, Industry Special Contribution Award and so on.
Who is your customers?
Packing details
We adopt vacuum and wooden case.
Payment,service and delivery
FAQ
Q:What is the delivery the warranty?
A:1 year warranty free for spare parts
Q:How about the after sales service?
A:We have professional after sales team,can solve your after-sales problems for you.
Q:Do you test before delivery?
A:Yes.we also test according to your requirement.
Q:What is the fastest speed of your machine?
A:The fastest speed can reach 70000 CPH.
