Product Details:
Payment & Shipping Terms:
|
| Length: | 2550mm | Width: | 1650mm |
|---|---|---|---|
| Height: | 1550mm | PCB Thickness: | 0.5-5mm |
| Warranty: | 1 Year | Feeders Station: | 28 PCS Single Module |
| Nozzles: | 12 PCS Single Module | Feeding Way: | Electric Feeder With Double Motor |
| High Light: | 2550mm Length SMT Chip Mounter,0.2mm Components SMT Chip Mounter,45000CPH Bulb LED Chip Mounter |
||

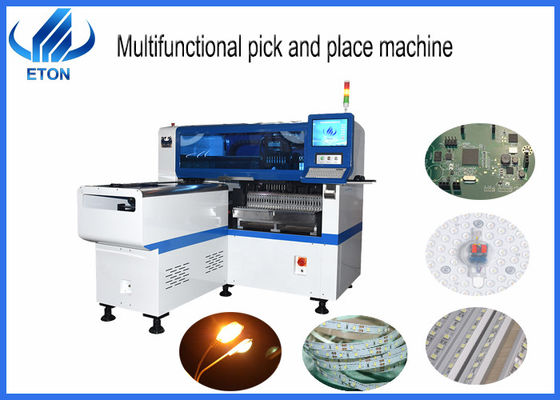

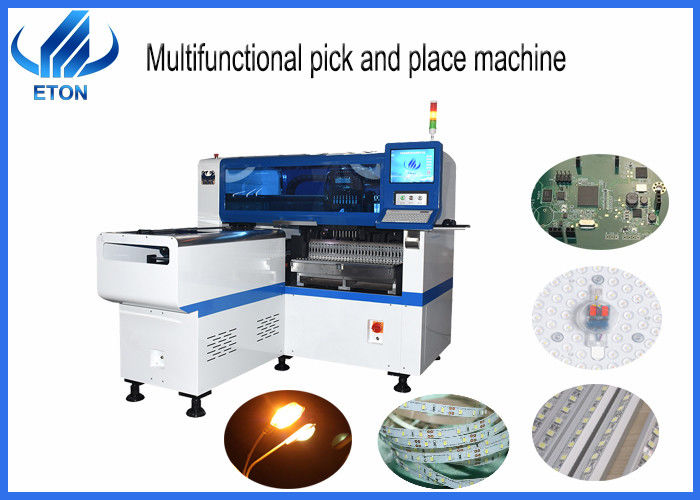

Multi-functional high precision with good stable SMT pick and place machine
Introduce products
The machine is single module magnetic linear motor multifunctional pick and place machine,which can produce bulb,flexible strip,lens,drive etc.
Product parameter
| PCB Length width |
Max:1200*500mm Min:100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group pick and separate placing,separate pick and separate placing |
| camera |
2 sets of imported camera Vision for the flight identification,mark correction |
| Mounting precision | ±0.04 |
| Mounting element height | <15mm(automatic changing) |
| Mounting speed | 45000CPH |
Feeding system
The pick and place machine single module,totally 28 PCS feeder station and 12 PCS nozzles,the feeding way id electric feeder with double motor.
Application
Components: LED,resistor ,capacitor,shaped components and son on.
Application:flexible light,bulb,panel light,lend,etc.
Machine details
Way of packing:
We adopt vacuum packing,the outer packing is in wooden cases
Logistics transportation
We support three modes of transportation,which is land,sea and air transport
After sales service
1.Training and installation are provided free of charge
2.Visit customers regularly and gather information
FAQ:
Q:what is your delivery date?
A:The delivery date is 30 days after receipt of deposit.
Q:What is terms of payment?
A:30% deposit in advance and 70% payment before delivery.
Q:Machine is easy t operate?
A:Yes,Machine is easy t operate,usually 3 to 5 days training of operating is enough.
Q:4.How is your training?
If you buy our machine.We will send our engineer to your factory to install machine and training freely.
