Product Details:
Payment & Shipping Terms:
|
| Name: | Single Module Machine | Dimension: | 1550*1650*1550mm |
|---|---|---|---|
| Weight: | 1500kg | PCB Max Size: | 600*500mm |
| PCB Main Size: | 100*100mm | Speed: | 45000CPH |
| High Light: | 15mm Height Pick And Place Machine,100*100mm PCB Pick And Place Machine,45000CPH Single Module Machine |
||

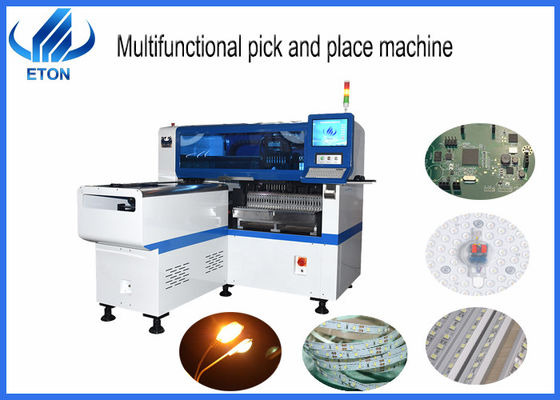

PCB Pick And Place Machine high speed high precision LED lens with 45000 CPH
Technical parameter
| PCB Length width |
Max:600*500mm Min:100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group pick and separate placing,separate pick and separate placing |
| camera |
2 sets of imported camera Vision for the flight identification,mark correction |
| Mounting precision | ±0.04 |
| Mounting element height | <15mm(automatic changing) |
| Mounting speed | 45000CPH |
| Feeders Station | 28 PCS single module |
| Nozzles | 12 PCS single module |
| Drive way | High-end magnetic linear motor+servo motor |
Product feature
Introduce products
Application
HT-E8S is a multi-functional high-speed machine. The products it mainly mounts are lamp tubes, flexible light strips, lenses, drivers, circuit boards, panel lights etc.
Machine details of HT-E8S
Company Profile
Our company ETON is the largest manufacturer of high speed pick and place machine.We start from 2011,around 8 years.As the leading brand of high-speed machine placement machines, ETON has an absolute leading position in the LED industry market share.In the market,around 80% of large LED factory are our client.Our company has an industrial park equipped with advanced processing and manufacturing centers
Our client
Our company strat from 2011.In the market,around 80% of large LED factory are our client.
Company exhibition
Our company has participated in exhibitions in India,Pakistan,Turkey and Thailand,etc
The terms of payment
we accept 30% deposit in advance and 70% payment before delivery.
Logistics transportation & Transportation
FAQ
Q:How is your training?
If you buy our machine.We will send our engineer to your factory to install machine and training freely.If client is India,we have service office in India,can support quickly.
Q:How is your warranty?
A:Standard warranty is one year,during warranty,any parts need to be repaired and replace will be free.
Q:It is hard to use these machines?
A:No,usually 3 to 5 days training of operating is enough.
Q:Is your software interface in English?
A:English interface and Chinese interface are both available.
Q:Why choose us?
A:Leading LED making machine in China,around 80% of large LED factory are our client.
