Product Details:
Payment & Shipping Terms:
|
| Name: | Dual Module Multi-functional Mounter | Component: | Min.size 0402 Max.height 15mm |
|---|---|---|---|
| Speed: | 90000cph | Mounting Components: | LED\capacitors\resistors\IC\shaped Component |
| Feeders Station: | 48 PCS Double Module | Nozzles: | 24 PCS Double Module |
| High Light: | 90000cph Mounting LED Lens Machine,Height 15mm Mounting LED Lens Machine,0.04mm LED Lens Chip Mounter |
||
Brand introduction
Shenzhen ETON Automatic Equipment Co.,LTD is a national high-tech enterprise and dual-soft enterprise dedicated to the research and development, production, sales and after-sales technology of SMT high-speed placement machines.
Product feature
1.To produce two different produce at the same time
2.Component:Min.size 0402 and Max.height 15mm
Application
Application:It can produce different types of LED light and electric board,such as tube,bulb,strip,panel,streetlight,power drive.

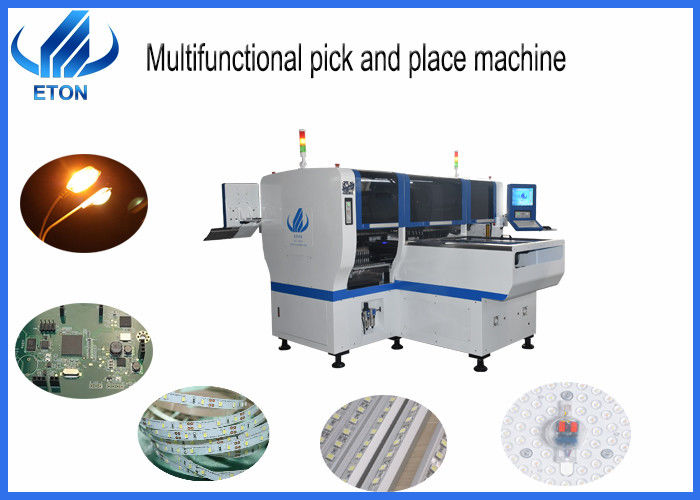

Introduce machine
The machine is dual system,dual module muti-functional mounter,total 24 heads,each part 12 head.It is highspeed machine,the optimum speed is 90000CPH.
Product parameter
| PCB Length width |
Max:1200*300mm Min:100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take group to mount,separate picking and separate placing |
| camera |
4 PCS Vision alignment,mark correction |
| Mounting precision | 0.02 mm |
| Mounting element height | ≤5mm |
| Feed station | 48 PCS |
| nozzles | 24 PCS |
| System | Windows 7 |
| Software | independent research and development |
| Display | Touch screen monitor |
Drive way
The X axis is magnetic linear motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
Company honour
Our company has obtained CCC, CE, SIRA certificates, and not only these, our company has successively won the National High-tech Enterprise, 2015 LED Technology Innovation Award, Industry Special Contribution Award and so on.
Logistics transportation
Our company support land,sea and air transport.
Warranty:
Our warranty is 1 year.(including spare parts)
Strengths of machine HT-E8D-1200
1. This is multifunctional machine HT-E8D with double module,total 24 heads,each part 12 head,can produce 2 types of products at the same time.
2. The X axis is magnetic linear motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
3. Its high precision,apply to LED chips,resistor,capacitor,IC,shaped components etc.
4. It is high speed machine,the optimum speed is 90000CPH.
5. Component:Min.size 0402 Max.height 15mm
Company after-sales service
FAQ:
Q:what kind of packing do you use?
A:we adopt vacuum packing,the outer packing is in wooden cases
Q:Does your machines have quality certificate?
A:Our machine have passed CE certificate ,ISO,CCC and 7 patents
Q:Machine is easy t operate?
A:Yes,usually 3 to 5 days training of operating is enough.
Q:How is the training?
A:After buying our machine,we will send our engineer to your factory to install machine and training freely.
