Pick And Place Machine with 200000 CPH with Flexible Strip superspeed

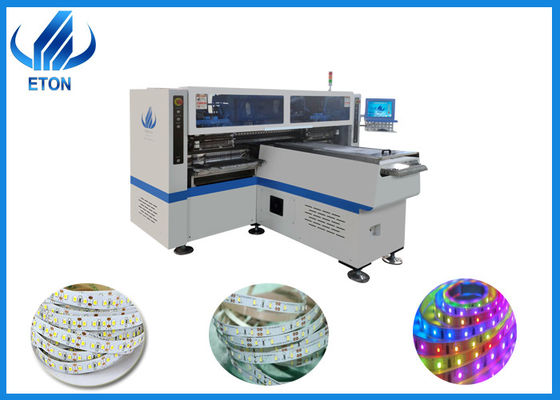

Large Image : Pick And Place Machine with 200000 CPH with Flexible Strip superspeed

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CCC,CE,SIRA
Model Number:	HT-T9
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	FOB USD 46000~86000/sets
Packaging Details:	vacuum and wooden case
Delivery Time:	15~30 days
Supply Ability:	50 set per month

Contact Now

Detailed Product Description

Size:	3100mm2300mm1550mm	Total Weight:	1700kg
PCB Length Width:	250 Mm*any Length	PCB Clamping:	Vacuum Adsorption,cylinder Splint,adjustable Track Width
Mounting Mode:	Group To Take And Group To Mount	Mounting Speed:	200000-250000CPH
Highlight:	3100mm Length Pick And Place Machine , SIRA Pick And Place Machine , 200000CPH Flexible Strip SMT Mounter

Product feature

Dual arm four modul,17 nozzles for each mounting part
Available for 5M,50M or any length of flexible strip and roll to roll
Calibration automatically,high precision,available for RGB

Introduce products

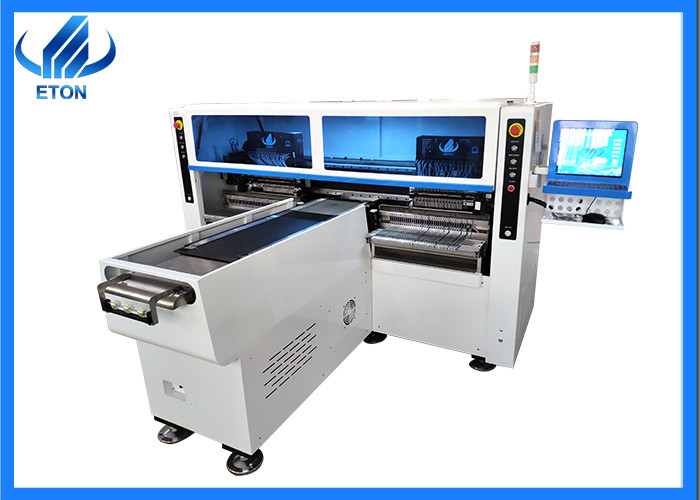

The machine is magnetic linear mounter for flexible strip, which is a super high speed machine, through group to take and group to mount achieve the production capacity of 200,000 points.

Main parameter

PCB Length width	250mm*any length
PCB thickness	0.5~1.5mm
PCB clamping	Vacuum adsorption,cylinder splint,adjustable track width
Mounting mode	Group to take group to mount
camera	5 PCS Vision alignment,mark correction
Mounting precision	±0.02 mm(repeat precision)
Mounting element height	≤5mm
Drive way	High end magnetic linear motor+servo motor
Feed station	68 PCS
nozzles	68 PCS

Application area

Suitable for Any length flexible light

Pick And Place Machine with 200000 CPH with Flexible Strip superspeed 0

After sales service

Training and installation are provided free of charge
Visit customers regularly and gather information

Way of packing:

Adopt vacuum packing,the outer packing is in wooden cases

Pick And Place Machine with 200000 CPH with Flexible Strip superspeed 1

Logistics transportation

Our company support land,sea and air transport.

Certification of company

Pick And Place Machine with 200000 CPH with Flexible Strip superspeed 2

Our client

We have exported machine to different countries,such as India,Egypt,Korea,Turkey etc.Such as FSL.ETI.KONKA,OPPLE,MLS are our client.In India such as PK,Surya,Skyquad are our client.

Pick And Place Machine with 200000 CPH with Flexible Strip superspeed 3

Remarks

1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.

2.Delivery time: 30 days after deposit.

FAQ

Q:What is the delivery date?

A:We will deliver the machine after 30 days' deposit.

Q:How about your system?

A:The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface.

Q:How is your warranty?

A:Standard warranty is one year,during warranty,any parts need to be repaired and replace will be free.

Q:How is your training?

A:We will send our engineer to your factory to install machine and training freely.
