Product Details:
Payment & Shipping Terms:
|
| Quality: | Best Quality | Type: | Single Module Machine |
|---|---|---|---|
| Component Size: | Min Size 0402 | Feeder Station: | 28 PCS |
| Nozzles: | 12 PCS | Period For Delivery: | 30 Days After Deposit |
| High Light: | 45000CPH LED Bulb Making Machine,15mm Mounting LED Bulb Making Machine,0402 Component Pick Place Machine |
||
Machine parameter
| Size | 2550*1650*1550mm |
| weight | 1700kg |
| PCB size |
Max:1200*500mm Min:100*100mm |
| No.of camera | 2 sets of imported camera |
| Mounting height | <15mm |
| Optimum speed | 45000CPH |
| Feeder station | 28 PCS |
| Nozzles | 12 PCS |
| X Y Z axis drive way | High-end magnetic linear motor and servo motor |
| Mounting mode | Group picking and separate placing,separat picking and separate placing |
application

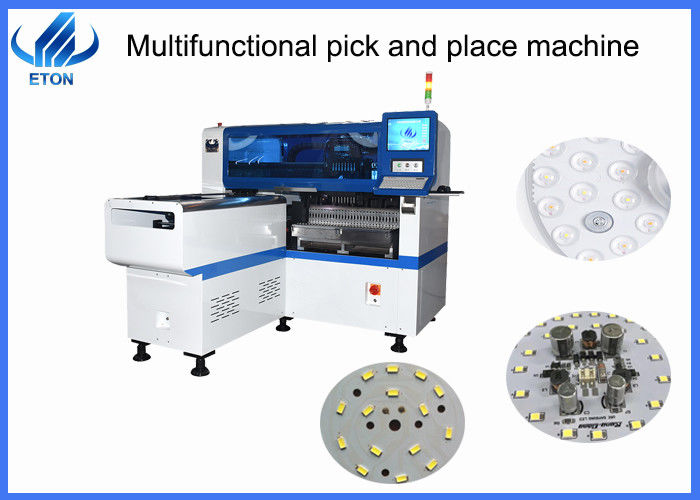

Multi-function machines are mainly used in a variety of products, such as bulbs, flexible light strips, lamp tubes, panel lights, display screens, etc., HT-E8S is a multi-functional high-speed machine,it mainly mounts are lamp tubes, flexible light strips, lenses, drivers, circuit boards, panel lights and so on.
Machine parts
Main feature
1. Mounting components:LED,capacitor,resistors,IC,shapes components etc.
2. Component:Min.size 0402 and Max.height 15 mm
3. Application:Power driver,eletric board,lens,linear bulb,household applicance etc.
Company information
Our company ETON is the largest manufacturer of high speed pick and place machine.We start from 2011,around 8 years.In the market,around 80% of large LED factory are our client.
Our company has an industrial park equipped with advanced processing and manufacturing centers
We also have many exhibitions, such as the domestic Shanghai Munich exhibition, and foreign India Delhi exhibition, India Mumbai exhibition, Pakistan exhibition, Turkey exhibition, Thailand exhibition and so on.
Certification of Honor
Our company has obtained CCC, CE, SIRA certificates, and not only these, our company has successively won the National High-tech Enterprise, 2015 LED Technology Innovation Award, Industry Special Contribution Award and so on.
Our clients
We have exported to different countries, such as India, Egypt, Turkey, Brazil and so on. In India, such as RK, Surya, Skyquad are our customer,and in China such as FSL,ETI,KONKA,OPPLE,MLS are our client.
Package description
The products exported by our company are all vacuum-packed and the outer packaging is wooden cases
Logistics transportation
In terms of transportation, we support three types of transportation by sea, land and air.
Remark
The delivery period is within four weeks after receiving the deposit
Term of payment:30% depositing on the date of signing contract,70% payment before delivery.
Quotation in valid:30 days
About service information
The main difference between dedicated machine and multi-function machine
| Multi-functional machine | Dedicated machine | |
| structure | Single arm | Double arm |
| mounting mode | Group picking and separate placing,separate picking and separate placing | Group to take and group to mount |
| X Y Z axis | The board feed direction is Y axis, and the head parallel movement direction is X axis, except for RT series | XY axis is opposite to multi-functional machine |
| Head spacing | ≤22mm | <5mm |
| Feeder station spacing |
18mm,(Not adjustable)
|
6.5mm,adjustable |
| 12.8mm,adjustable |
FAQ
Q:Why your price is so high?
A:Because the quality, accuracy and performance of our machines are relatively good,different but better.
Q:How about your system?
A:The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface.
Q:What is the maximum PCB size ?
A:It is 1200*500mm.
