Product Details:
Payment & Shipping Terms:
|
| Warranty: | One Year | Quality: | Top Quality |
|---|---|---|---|
| Feeder Station: | 68 PCS | Heads: | 68 PCS |
| Feeding Way: | Electric Feeder With Double Motor | Dimension: | 3100*2300*1550mm |
| High Light: | 68 Heads SMT Pick Place Machine,250000CPH SMT Pick Place Machine,SIRA Led Flexible Strip Chip Mounter |
||

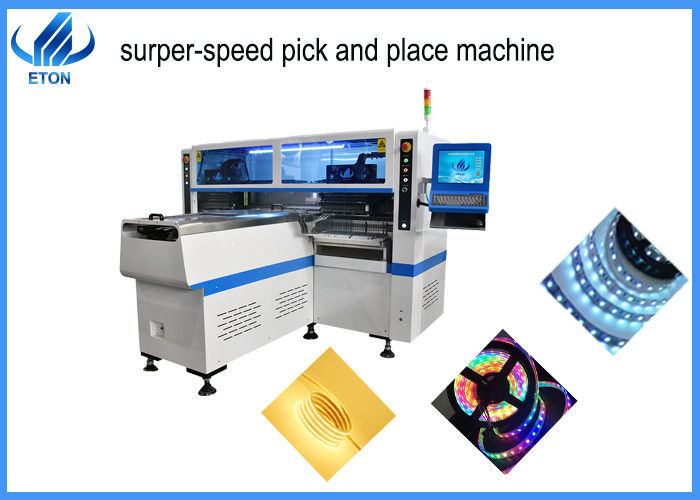

68 heads SMT pick and place machine highspeed automatic with led flexible strip
The feature of machine
1. Dual arm four module,17 nozzles for each mounting part
2. Available for 5M,50M or any length of flexible strip and Roll to Roll
3. Can produce 2-4 types materials at the same time, and the production capacity is not affected by the material ratio
4. Mounting speed reach 200000 CPH,calibration automatically,high precision,available for RGB
5. Components:LED3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers
Main technical parameter
| PCB length width | 250mm*any length |
| PCB thickness | 0.5-1.5mm |
| PCB clamping | Vacuum adsorption,cylinder splint,adjustable track width |
| Mounting mode | Group to take and group to mount |
| No.of camera | 5 PCS |
| Mounting speed | 200000-250000CPH |
| No.of feeder station | 68 PCS |
| No.of nozzles | 68 PCS |
| Feeding system |
Electric feeder with double motor |
Application
Our company's special machines are mainly used in linear products, such as flexible light strips and tubes. The machine HT-T9 is mainly produces flexible light strips of any length, but can only produce soft light strips, such as half a meter, 1 meter, 5 meters, 10 meters, 50 meters, 100 meters, and 500 meters.
About machine camera
| camera | Function |
| Feeder station camera*2 | Adjust the nozzle spacing by illuminating the center of the nozzle |
| Nozzles camera*2 | Adjust the feeder spacing by illuminating the center scale line of the feeder |
| MARK camera*1 | Make the PCB board placement program based on the MARK point |
Shenzhen ETON Automation Equipment Co.,LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on High efficiency Low consumption.And we have our own industrial park, which can further standardize and streamline the production process.
➽Company five level management policy:sincere business,focus on R&D,manufacturing intentions,considerate service,customer trust
➽ETON mission:professional,excellent technology,sharing the results
➽ETON goal:to create a national brand,build international Chinese enterprises
➽ETON’s purpose:to create value for customers,creating benefits for society
➽ETON vision:determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
About our exports
We exported machine to more than 20 countries.
Company after-sales service
Payment Terms
FAQ:
Q:How is the training?
A: after buying our machine,We will provide you with free machine installation and free training
Q: why your price is so high?
A:cause our machine quality,accuracy and performance is better,different but better.
Q: how is the breakdown rate of machine?
A:our machine is very stable,the breakdown rate is less than 0.001.
Q:Does your machine have quality certificate?
A:Our machine have pass CE certificate,SIRA,ISO and have patent.
Q:Is it safe during the delivery?
A:All the machine is packed safely,by standard strong wooden carton with vacuum package.
Q:What is your transportation?
A:Sea transportation,land carriage and air transportation is OK.
