Product Details:
Payment & Shipping Terms:
|
| Speed: | 250000CPH | System: | Windows 7 |
|---|---|---|---|
| Heads: | 68 PCS | Feeder Station: | 34 Pcs |
| Type: | Highspeed Placement Machine | Warranty: | 1 Year |
| High Light: | Magnetic Linear LED Pick Place Machine,LED Pick Place Machine 250000CPH,CCC Magnetic Linear Chip Mounter |
||

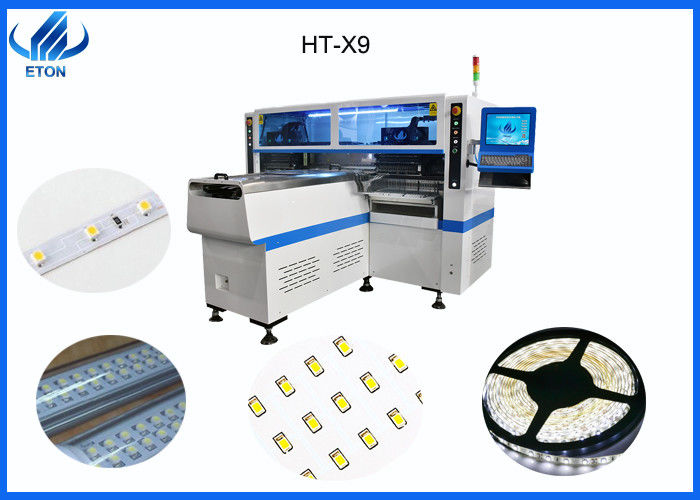

Dual arm Magnetic linear LED highspeed pick and place machine with good stable
Main Feature of machine
▲The machine HT-X9 is dual magnetic linear high speed pick and place machine,capacity reach 250000 CPH .
▲High-end magnetic linear motor+servo motor
▲68 heads,Dual arm four module,17 nozzles for each mounting part.
▲Producing with 2 types of materials with high capacity.
▲It will improve your production efficiency,save labor,space,power etc.
Application
Technical parameter
| Dimension | 2700*1780*1550mm |
| Total weight | 1500kg |
| PCB length width |
Max:1200*350mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| No.of camera | 5 PCS(digital camera) |
| Feature of camera | Vision alignment,Mark correction |
| Mounting precision | ±0.02mm |
| Mounting element | ≤5mm |
| Mounting speed | 200000-250000 CPH |
| Feeder station | 34 PCS |
| Nozzles | 68 PCS |
| XYZ axis drive way | High-end magnetic linear motor+servo motor |
| Feeding way |
Electric feeder with double motor
|
About our system
Our system is Windows 7, software is R&D independently,the Display is touch screen monitor,and Input Device is Keyboard and Mouse.
The electrical control,Motion control and module 1 set is Independent research and development by ETON.
Company Information
✬Our company ETON is the largest manufacturer of high speed pick and place machine.We start from 2011,around 8 years.ETON’s original manufacturing plan, the pursuit of rigorous quality management and perfect after-sales service, provide customers with professional production lines and provide technical support.
✬Our company has obtained CCC, CE, SIRA certificates, and not only these, our company has successively won the National High-tech Enterprise, 2015 LED Technology Innovation Award, Industry Special Contribution Award and so on.
Exhibitions information
We also have many exhibitions, such as the domestic Shanghai Munich exhibition, and foreign India Delhi exhibition, India Mumbai exhibition, Pakistan exhibition, Turkey exhibition, Thailand exhibition and so on.
Logistics transportation
we support three types of transportation by sea, land and air.
Payment and Delivery date
1. Payment:T/T
2. Delivery date:Within 30 days after receiving the deposit.
About training
If you buy our machine,we will send our engineer to your factory to install machine and training freely.
FAQ:
Q:how is your warranty?
A:standard warranty is one year,during warranty,any part need to be repaired and replace will be free.
Q:Machine is easy to operate?
A:machine is easy to operate,usually 3 to 5 days training of operating is enough.
Q:How about the after sales service?
A:We have professional after sales team,can solve your after-sales problems for you.
Q:Do you test before delivery?
A:Yes.we also test according to your requirement.
