| Length: | 1950mm | Width: | 2250mm |
|---|---|---|---|
| Height: | 1650mm | Total Weight: | 2200kg |
| PCB Clamping: | Adjustable Pressure Pneumatic | PCB Thickness: | 0.5-5mm |
| Mounting Element Height: | <15mm | Mounting Speed: | 90000CPH |
| High Light: | 15mm Mounting LED Making Machine,1950mm Length LED Making Machine,90000CPH Smt Line Machine |
||
Advantages of LED
Introducing company
ETON is a national high-tech enterprise dedicated to R&D, production and sales of SMT high-speed machine placement machines, technical after-sales technical services. The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 utility patents, and 12 software copyrights.
Product characteristic
♛The maximum length of placeable PCB board is 600*350mm,and minimum size is 100*100mm
♛Component:LED/capacitor/resistor/shaped components,etc.
♛System:Windows 7
♛Software:R&D independently
♛Mounting speed:90000CPH
♛Feeder station:48 PCS
♛Nozzles:24 PCS
♛Drive way:high-end magnetic linear motor and servo motor for X,Y,Z axis

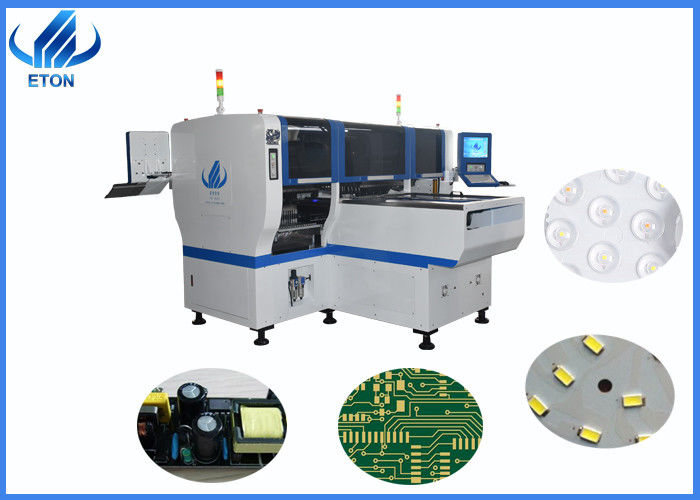

Main parameter of HT-E8D
| Dimension | 1950*2250*1650mm |
| Total weight | 2200kg |
| PCB Length width |
Max:600*350mm Min:100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separate placing,separate picking and separate placing |
| No.of camera | 4 PCS |
| Feature of camera | Vision alignment,mark correction |
| Mounting precision | 0.02 mm |
| Mounting element height | ≤5mm |
| Feed station | 48 PCS |
| nozzles | 24 PCS |
| Mounting speed | 90000CPH |
| Components space | 0.2mm |
| X Y Z axis drive way | High-end magnetic linear motor+servo motor |
| Feeding way | Electric feeder with double motor |
| System | Windows 7 |
| Software | independent research and development |
| Display | Touch screen monitor |
| Input device | Keyboard,Mouse |
Exclusive patented technology
Application
Perfect placement of various Power drives,electric boards,lens,linear bulb,household appliance,etc.
Optimum speed
| Name | Most productive | The actual production capacity of the lamp tube | The actual production capacity of the bulb |
| HT-E8D | 90000CPH | According to the actual production situation | |
| HT-E8S | 45000CPH | ||
Certification of Honor
We have obtained a number of certificates related to the machine and the company's honorary certificate
ETON machine introduction
Our company manufactures different types of placement machines and SMT machines.
