Product Details:
Payment & Shipping Terms:
|
| Warranty: | One Year | Module: | Four Module |
|---|---|---|---|
| System: | Windows 7 | Software: | R&D Independently |
| Feeder: | 80 Pcs | Hedas: | 40 Pcs |
| Name: | Led Chip Mounter | Power: | 380ac,50 Hz |
| Payment: | T/T,LC | Application: | Smt Line,smt Machine |
| High Light: | Magnetic Linear Motor SMT Mounting Machine,7.5mm Height SMT Mounting Machine,170000CPH Four Module Smt Mounter |
||

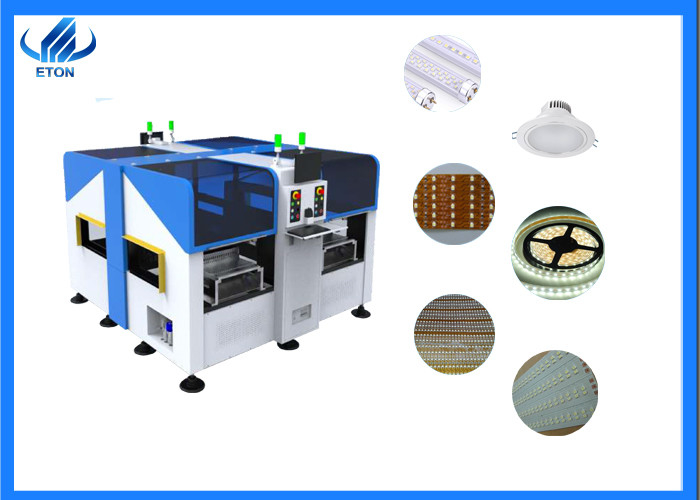

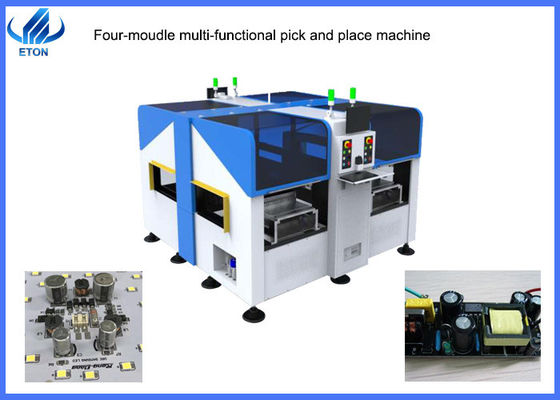

Four-module magnetic linear motor multifunctional pick and place machine with highspeed
Feature description
Technical parameter
| Model | RT-4 | |
| Dimension | 2086*2237*1500mm | |
| Total weight | 4500kg | |
| PCB | size |
Max:500*310mm Min:50*50mm |
| Thickness | 0.1-6mm | |
| Clamping | Electric clamping | |
| Mounting mode | Group picking and separate placing,separate picking and separate placing. | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | Touch screen monitor | |
| Input device | Keyboard,mouse | |
| Vision system | camera | 8 PCS digital camera |
| Mounting precision | 0.04mm | |
| Mounting element height | ≤7.5mm | |
| Mounting speed | 120000-140000CPH | |
| Components | LED and capacitor,resistors,IC,shaped component,etc. | |
Feeding system
The pick and place machine is Four-module,totally 80 feeders station and 40 nozzles,adopt the feeding way of electric feeder with double motor.
Application of RT-4
Examples of product applications that can be mounted on this machine, such as bulbs, circuit boards, downlights, street lights, and drivers.
The company's quality policy
✱Company five level management policy:sincere business,focus on R&D,manufacturing intentions,considerate service,customer trust.
✮ETON mission:professional,excellent technology,sharing the results
✱ETON goal:to create a national brand,build international Chinese enterprises
✮ETON’s purpose:to create value for customers,creating benefits for society
✱ETON vision:determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
Company Certification
Our company has obtained CCC, CE, SIRA certificates, and not only these, our company has successively won the National High-tech Enterprise, 2015 LED Technology Innovation Award, Industry Special Contribution Award,The 4th China LED First Innovation Aware and so on.
Exhibition
We also have many exhibitions, such as the domestic Shanghai Munich exhibition, and foreign India Delhi exhibition, India Mumbai exhibition, Pakistan exhibition, Turkey exhibition, Thailand exhibition and so on.
Company after-sales service
About transaction information
♔Logistics transportation: we support three types of transportation by sea, land and air.
♔standard packaging:Vacuum packaging + wooden box packaging
♔Supply Capacity:50 units per month
♔Term of payment:L/C,T/T
♔Delivery period:30 days after deposit
FAQ:
Q:Are you a manufacturer or trading company?
A:We are an enterprise integrating R&D, production, sales and after-sales service
Q:If I have no experience,The machine is easy to use?
A:Yes,our machine is designed to use easily,usually 3 to 5 days to learn how to operate.
Q:How is the breakdown rate of machine?
A:Our machine is very stable,the breakdown rate is less than 0.001;.
Q:Is your software interface in English?
A:English interface and Chinese interface are both available.
Q:Why your price is so high?
A:Because the quality, accuracy and performance of our machines are relatively good,different but better.
