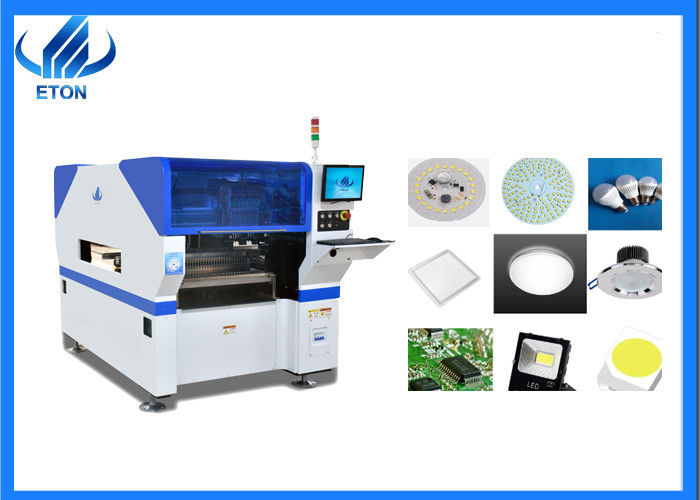

DOB Production Line 35000CPH Panel Light Chip Mounter CCC

DOB Production Line 35000CPH Panel Light Chip Mounter CCC
DOB Production Line 35000CPH Panel Light Chip Mounter CCC

Large Image :  DOB Production Line 35000CPH Panel Light Chip Mounter CCC

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE , ISO , CCC
Model Number: RT-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 26000~48000
Packaging Details: Vacuum wooden packing
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 50 Unit per mouth
Detailed Product Description
Length*Width*Height: 1200*1930*1500mm Total Weight: 2200kg
PCB Length Width: Max:400*350mm Min:50*50mm Mounting Precision: ±0.02mm ,Vision Alignment, Mark Vision
Mounting Speed: 35000CPH Components: LED,resistor,capacitors,shaped Components,etc.
High Light:

35000CPH Panel Light Chip Mounter

,

Panel Light Chip Mounter CCC

,

DOB Production Line Chip Mounter

DOB Production Line SMT Chip Mounter Machine RT-1







Characteristics

Magnetic linear motor multifunctional pick and place machine.

Mounting components: LED, capacitors, resistors, IC, shaped components, etc.

Application: DOB, LED bulb, LED strip, LED tube, lens, Power driver, Electric board, etc.

Support mounting over 22mm high components, very suitable for DOB mounting.

Electronic feeder feeding system.

Vision alignment flight identification, Mark correction.

Auto-optimization after coordinates generations, etc.



Technical parameter
Length*Width*Height 1200*1930*1500mm
Total Weight 2200kg
PCB Length Width Max:400*350mm Min:50*50mm
Mounting Precision

±0.02mm ,Vision alignment,

Mark vision

Mounting speed 35000 CPH
Components LED,resistor,capacitors,shaped components,etc.
power/power consumption 380AC,50Hz/ 6kw
No.of Feeders Station 32 PCS
No.of nozzles 10 PCS
Mounting Height <22mm



Main process of SMT Line for DOB manufacturing

DOB Production Line 35000CPH Panel Light Chip Mounter CCC 0



Different type of DOB PCBA

DOB Production Line 35000CPH Panel Light Chip Mounter CCC 1



The PCBA of Linear bulbs

DOB Production Line 35000CPH Panel Light Chip Mounter CCC 2
