Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine/led Lighting Making Machine | Module: | HT-E8S-1200 |
|---|---|---|---|
| Warranty: | 1 Year | Capacity: | 45000cph |
| Service: | Free | Power: | 380VAC 50 HZ |
| High Light: | 4KW Pick And Place Machine,380VAC Pick And Place Machine,45000cph Led Lighting Chip Mounter |
||
Whole SMT line machines for automatic producing
Parameter of pick and place machine

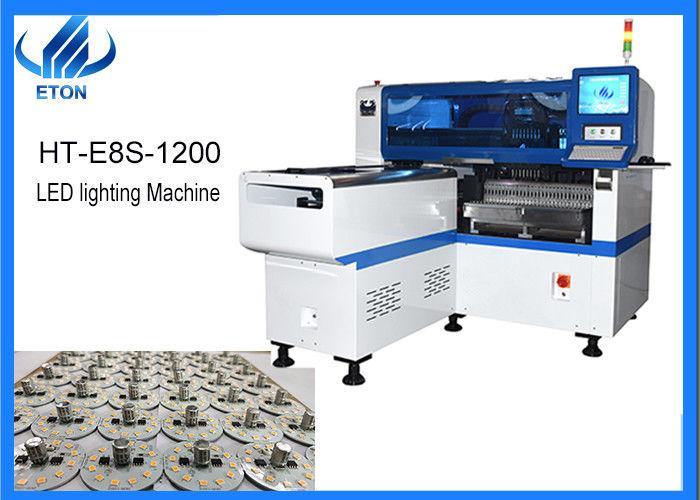

Pick and place machine as the main technology in the SMT line, also the most important machine in the whole line. ETON as the pick and place machine manufacturer, We reach and develop machine by ourselves . Here is one module of ETON pick and place machine----HT-E8S-1200.
HT-E8S-1200 is very multifunctional machine, it apply to led bulb, tube light, panel light, display, strip light, and electrical board, etc. Here are the main parameter of this module:
| Pick and place machine module | HT-E8S-1200 |
| Machine mounting speed | 45000 CPH(CHIP PER HOUR) |
| Machine Dimension | 2550*1650*1550 MM |
| PCB Length Width | Max:1200*500 mm Min:100*100 mm |
| Mounting Mode | Group picking and separate placing, separate picking and separate placing |
| Power | 380 AC 50HZ |
| Power Consumption | 4KW |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
Parameter of conveyor machine
For 1.2m tube we recommend for 1.4m conveyor, for 1m strip light, we recommend for 1.2m conveyor. Here are the conveyor parameter:
| Conveyor module | ET-C1400 |
| Rail length | 1400 mm |
| Width adjustment range | 50-390 mm |
| Transmission | 7 MM flat belt conveyor |
| Control | Industrial control panel |
Parameter of stencil printer machine
Stencil printer function is print the solder paste on the PCB, it can be automatic or semiautomatic, but automatic stencil printer is much expensive than semiautomatic stencil printer, here are the semiautomatic stencil printer parameters:
| Semiautomatic printer module | ET-S1200 |
| Printing Area | 1200*250 mm |
| Plate Area | 1250*300 mm |
| Stencil Frame Size | 470*370 mm-1300*550 mm (L*W) |
| Power Consumption | 120 W |
Parameter of Reflow oven machine
Reflow oven machine function is by solder paste is heated and then cooled to fix it to the circuit board. We support different size of reflow oven machine, here are the main parameter of eight reflow oven machine:
| Reflow oven module | ET-R8 |
| Dimension | 4800*1200*1450 mm |
| Weight | 1400 kg |
| Number district heating | 16 |
| Heating zone length | 3000 mm |
| Number cooling zones | 2 |
Whole SMT line
We provide whole SMT line machines, for much detail, please contact us.
After sales service
We provide free service and one year warranty, much details please contact us : Whatsapp or Wechat number: +8613590151025
