Product Details:
Payment & Shipping Terms:
|
| Warranty: | One Year | Payment: | T/T |
|---|---|---|---|
| Max PCB Size: | 1200*500mm | Speed: | 45000CPH |
| System: | Windows 7 | Feeding Way: | Electric Feeder With Double Motor |
| High Light: | 1200mm Conveyor Pick And Place Machine,Panel Tube Pick And Place Machine,45000CPH LED Bulb Making Machine |
||
multifunctional pick and place machine led lens panel tube bulb making machine with high speed
Technical parameter

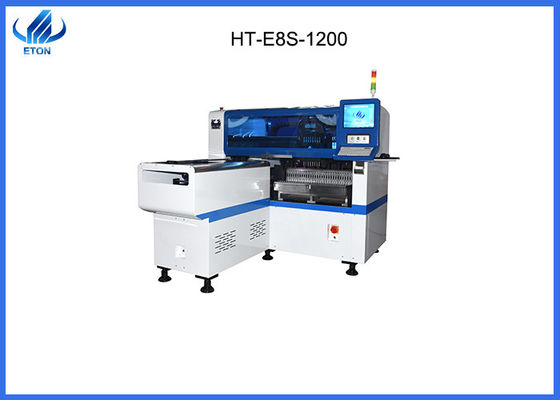

∎Model:HT-E8S-1200
∎Length*Width*Height:2550*1650*1550mm
∎Total Weight:1700kg
∎PCB length width:
Max:1200*500mm Min:100*100mm
∎PCB clamping:adjustable pressure pneumatic
∎PCB thickness:0.5-5mm
∎No.of camera:2 sets of imported camera
∎Feature of camera:Vision for the flight identification,Mark correction
∎Mounting precision:Plus or minus 0.04 mm
∎Mounting mode:group picking and separate,separate picking and separate placing.
∎Mounting speed:45000CPH
∎Component space:0.2mm
∎Conveyor transmission:1200mm
∎Transmission speed:>500mm/sec
∎X,Y,Z axis drive way:high-end magnetic linear motor+servo motor
Feeding system
The pick and place machine is single mode,totally 28 feeders station and 12 nozzles,adopt the feeding way of electric feeder with double motor
Mounting mode
Group picking and separate,separate picking and separate placing.Because each mounting head of the multifunction machine is relatively independent, one can stick multiple lamp beads back and forth.So Multi-function machines are mainly used in a variety of products, such as bulbs, flexible light strips, lamp tubes, panel lights, display screens, etc.
Actual speed
The actual speed is influenced by many factors,such as the number of the component,the kind of products,the time of speed board,etc.
Advantage of machine E8S-1200
Its high accuracy,apply to LED chips,resistor,capacitor,IC,shaped component etc
It’s intelligent,can produce different types of LED light and electric board,such as tube,bulb,strip,panel,down-light,streetlight,power drive.
The optimum speed is 45000CPH
Certification of company
Our company has obtained CCC, CE, SIRA certificates, and not only these, our company has successively won the National High-tech Enterprise, 2015 LED Technology Innovation Award, Industry Special Contribution Award and so on.
About our company
Our company ETON is the largest manufacturer of high speed pick and place machine.We start from 2011,around 8 years.As the leading brand of high-speed machine placement machines, ETON has an absolute leading position in the LED industry market share.In the market,around 80% of large LED factory are our client.Our company has an industrial park equipped with advanced processing and manufacturing centers
SMT line
Questions you might ask
| Why do we adopt the smart electronic feeders? | Our machines adopt the smart electronic feeders which are more stable,universal and intelligent. The feeding speed of electronic feeder is faster than the traditional pneumatic feeder.It can avoid the cost and drop of materials effectively. |
|
What's about the guarantee of the machines? |
The maintenance:1 year whole machine,any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z. |
|
What are the main LED products o our machines for? |
There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on. |
| What kind of service I can have, if I buy machine from ETON ? | We will give you install and training. It is free for you. And we will sent engineer with you. |
| It’s hard to use the machine? | No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines. |
Remark

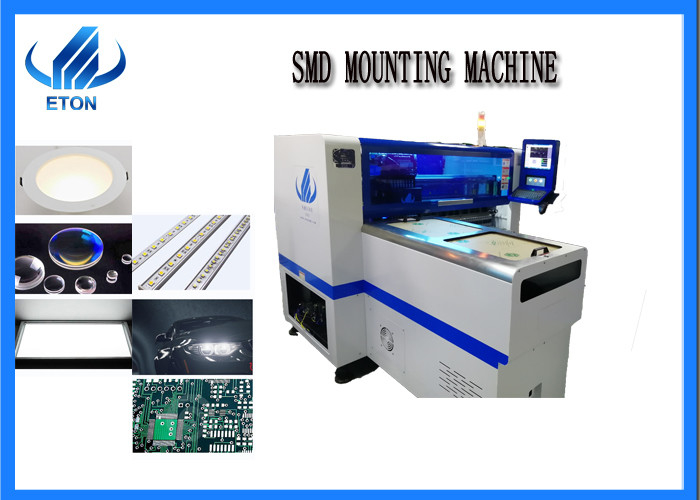

Our company’s multifunctional machine
