Product Details:
Payment & Shipping Terms:
|
Max PCB Sizw: | 400*350mm | Warranty: | One Year |
---|---|---|---|
System: | Windows 7 | Software: | R&D Independtly |
No.of Camera: | 2 PCS | Head: | 10 Pcs |
High Light: | 30000CPH Smd Placement Machine,Electric Clamping Smd Placement Machine,SIRA LED Making Machine |

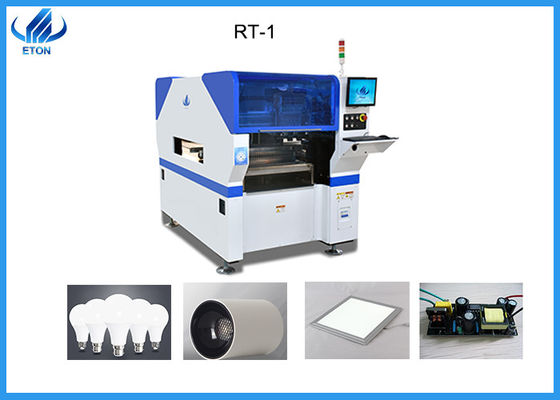

SMT professional manufacturer pick and place machine with high precision LED making machine
Main technical parameter |
|
Dimension | 1200*1930*1500mm |
PCB size |
MAX:400*350MM MIN:50*50MM |
PCB clamping | Electric clamping |
Mounting precision | ±0.04mm |
Mounting element height | ≤22mm |
Mounting speed | 30000-35000 CPH |
Feeding way | Electric feeder with double motor |
No.of feeders station | 32 PCS |
No.of nozzles | 10 PCS |
Advantages of RT series design

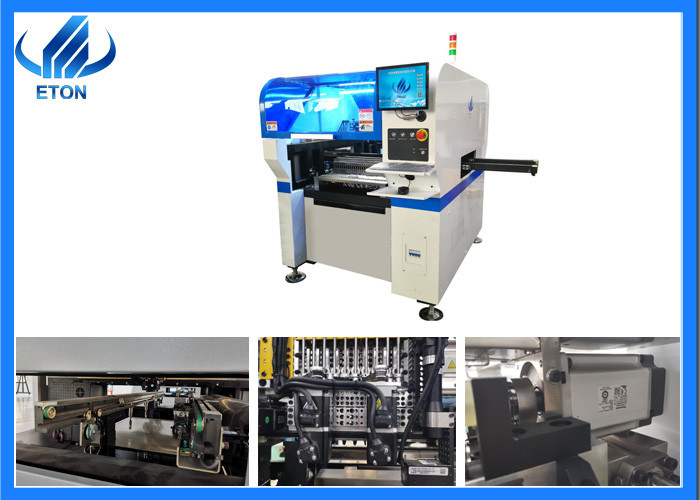

Machine information
Feeding system
No.of feeders station | 28 PCS single module |
No.of nozzles | 12 PCS single module |
Feeding way | Electric feeder with double motor |
X,Y,Z Axis drive way | High-end magnetic linear motor+servo motor |
Application & components
Actual capacity
Precautions for using the machine
1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
Introducing company
Our company set up 2011.High efficiency High quality and High Stable are the technology of ETON,strong technology innovation and strict pursuit of quality control,with excellent service,ETON has created superior value for customers as the outstanding worldwide brand of highspeed SMT machine with good reputation.
Industrial Park
Our company’s industrial park was successfully completed,equipped with an advanced processing and manufacturing center,strict quality control,and standardize production,streamline production production,and has invented the fastest automatic pick and place machine with speed 250000 CPH,which save much labors and space of production.
Payment and Delivery date
1. Term of Payment:30% depositing on the date of signing contract,70% payment before delivery.
2. Delivery date:Within 30 days after receiving the deposit
Contact Person: Ms. Linda
Tel: 0086 13670197725 (Whatsapp/Wechat)
Fax: 0086-755- 29502066
